Description

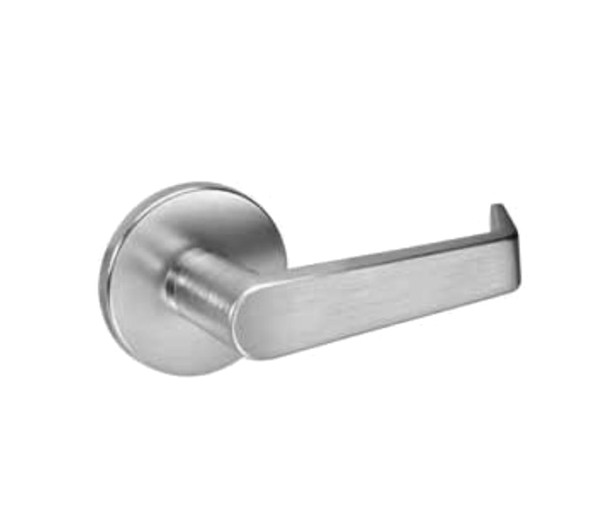

The Yale 8847FL 626 Trim Pack is a heavy-duty mortise lock assembly for commercial doors requiring ANSI/BHMA Grade 1 security and durability. Designed for offices, retail, healthcare and institutional settings, it delivers reinforced stainless steel construction and vandal-resistant trim to protect high-traffic entryways from forced entry and wear.
This mortise lock fits standard 1-3/4" doors and thicker with field-reversible handing and a 2-3/4" backset. It comes keyed-random with two keys and includes a curved lip strike. As an authorized Yale dealer, E.D. Locks can help you select the right finish, cylinder pin configuration and door thickness option. Contact sales@edlocks.com or call 1-877-207-6067 for expert guidance.
Specifications
- ANSI/BHMA A156.13 Grade 1 certified
- UL/cUL fire rated up to 3 hours
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door thickness: 1-3/4" standard, up to 3-1/4" available
- Cylinders: Brass, 6-pin keyed-random (7-pin available)
- Includes two keys and reversible strike
- Available in 17 finishes
- 10-year mechanical warranty
