Description

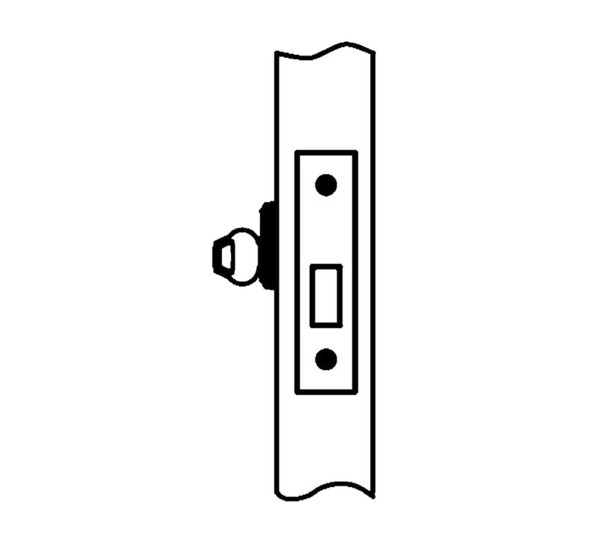

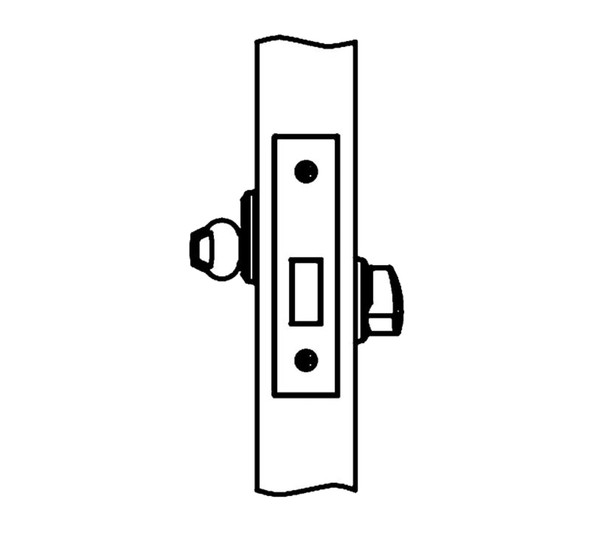

DL4100 Series Mortise Deadlocks
Listed for use on fire doors.
- Handing: Non-handed.
- Door Thickness: Standard- 1-3/4" (44mm). Optional door thicknesses available; see Quick Codes.
- Backset: 2-3/4" (70mm).
- Lockcase: Heavy wrought steel; zinc dichromate finish.
- Front: Brass, bronze, stainless steel. 4-5/8"(117mm) x 1-1/8" (29mm). Adjustable for flat or beveled doors (bevel adjustment 1/8"(3mm) in 2"(51mm).
- Deadbolt: Steel with hardened pin; 1" (25mm) throw.
- Strike: Standard: wrought brass or bronze, 3-1/2" (89mm) x 1-1/8" (29mm). Optional strikes available.
- Cylinder: 6-pin, L4 keyway, 0-bitted. Security cylinder optional; see Quick Codes.
- Keys: Two nickel silver standard.
- Keying Features Available: Master keying; Construction master keying; 7-pin (FC) conventional; Interchangeable core (IC); Security; Security (IC); Visual key control; Concealed key control; Pyramid (FC); Pyramid (IC)
- Warranty: One-year limited.
