Description

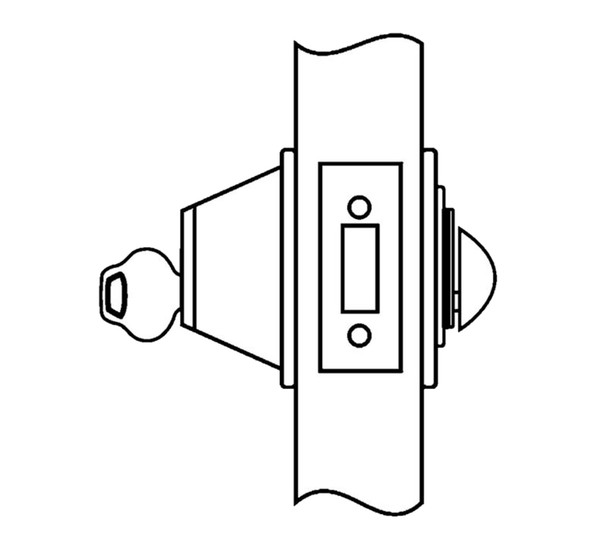

The Corbin Russwin DL3013 626 LC is a non-handed deadlock designed for standard 1 3/4" to 2 1/4" thick doors. It features a 1" throw zinc diecast hardened steel bolt and wrought brass or bronze front, making it ideal for commercial and institutional applications requiring reliable keyed deadbolt security.
This lock accepts 2 3/4" or optional 2 3/8" backsets and is compatible with flat and beveled doors. Choose from master keying, interchangeable core, security cylinders, and visual key control options to match your access requirements. As an authorized Corbin Russwin dealer, E.D. Locks provides expert configuration assistance and free shipping on orders over $450. Contact sales@edlocks.com or call 1-877-207-6067 for keying guidance.
Specifications
- Handing: Non-handed
- Door Thickness: 1 3/4" to 2 1/4" standard; optional sizes available
- Backset: 2 3/4" standard; 2 3/8" optional
- Front: Wrought brass or bronze, 2 1/4" x 1 1/8"
- Deadbolt: Zinc diecast hardened steel, 1" throw, 5/8" wide x 3/4" high
- Strike: 2 3/4" x 1 1/8" standard; optional strikes available
- Cylinder: Brass, 6-pin, L4 keyway, 0-bitted
- Keys: Two nickel silver standard
- Keying Options: Master keying, construction master keying, 7-pin, interchangeable core, security, visual key control, concealed key control, pyramid
- Warranty: One-year limited
