Description

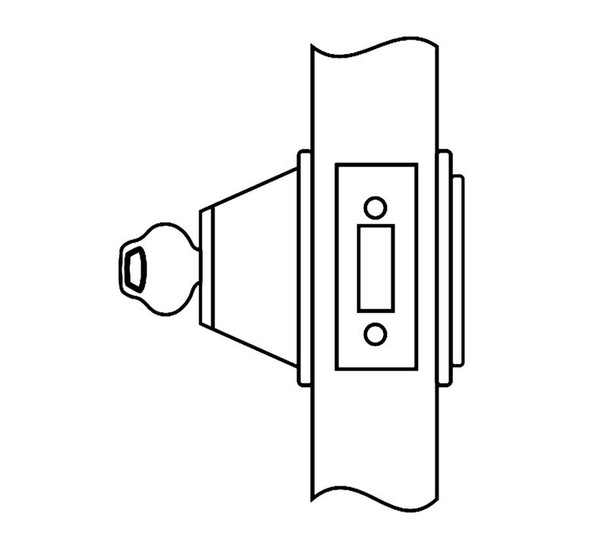

The Corbin Russwin DL3011 is a heavy-duty deadlock designed for commercial and institutional doors requiring reliable keyed security. Non-handed operation makes it versatile for retrofit or new construction, solving the need for flexible, field-reversible locking on standard hollow metal or wood doors.
This deadlock fits doors 1-3/4" to 2-1/4" thick with a standard 2-3/4" backset and includes a 1" throw hardened steel bolt. Compatible with master keying, interchangeable cores, and security cylinders. As an authorized dealer, E.D. Locks provides expert configuration assistance and keying support at sales@edlocks.com or 1-877-207-6067 to ensure proper installation and system integration.
Specifications
- Brand: Corbin Russwin
- Model: DL3011
- Finish: 626 (Satin Chrome)
- Cylinder: Brass, 6-pin, L4 keyway
- Handing: Non-handed
- Door Thickness: 1-3/4" to 2-1/4" standard
- Backset: 2-3/4" standard (2-3/8" optional)
- Bolt Throw: 1"
- Bolt Dimensions: 5/8" wide x 3/4" high
- Front Plate: Wrought brass or bronze, 2-1/4" x 1-1/8"
- Strike Plate: 2-3/4" x 1-1/8" standard
- Keys Included: Two nickel silver
- Keying Options: Master, construction master, 7-pin, interchangeable core, security, visual and concealed key control
- Warranty: One-year limited
