Description

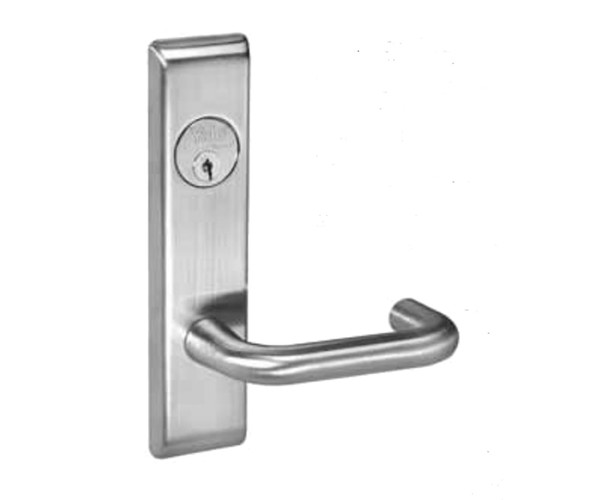

The Yale 8800 Series mortise lock delivers commercial-grade security for doors in high-traffic buildings, schools, offices and healthcare facilities. This ANSI/BHMA Grade 1 certified lock features a reinforced stainless steel deadbolt, vandal-resistant trim, and heavy-duty construction designed to withstand years of daily use without compromise.
The lock accommodates standard 1-3/4" doors and thicker with field-reversible handing and a quick-change latchbolt for flexible installation. UL/cUL fire-rated for up to 3 hours and backed by a 10-year mechanical warranty. Contact our security specialists at sales@edlocks.com or 1-877-207-6067 for keying options, finish selection, and expert installation guidance.
Specifications
- Certification: ANSI/BHMA A156.13, Series 1000, Grade 1; UL/cUL fire-rated up to 3 hours
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (up to 3-1/4" available)
- Cylinder: Brass, 6-pin keyed-random with two keys standard
- Mechanism: Stainless steel
- Front: Bevel front, free-floating adjustment
- Strike: 1-1/4" curved lip for 1-3/4" doors standard
- Reversibility: Field reversible handing
- Finishes: 17 available finishes
- Warranty: 10 years mechanical
