Description

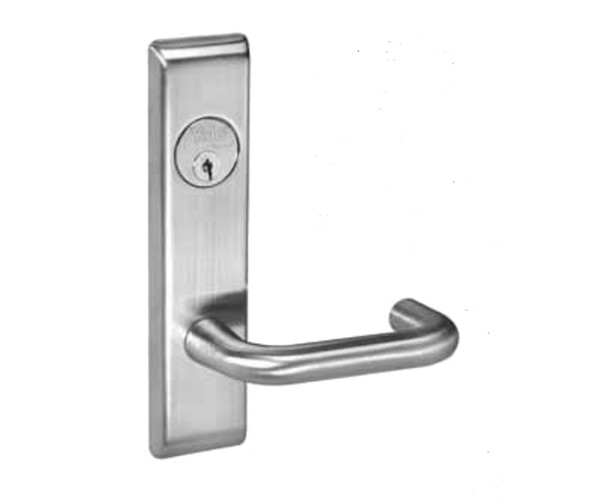

The Yale 8800 Series mortise lock trim pack is a Grade 1 commercial-duty solution for facilities and building managers who demand uncompromising security and durability. This reinforced stainless steel deadbolt with heavy-duty, vandal-resistant trim meets ANSI/BHMA certification standards and delivers 3-hour UL/cUL fire-rated performance for high-traffic doors in offices, schools, hospitals and multi-family buildings.
The CRCN8824FL fits standard 1-3/4 inch doors and features field-reversible handing, a 3/4 inch stainless steel latchbolt, and a 2-3/4 inch backset with 6-pin keyed-random cylinders (two keys included). E.D. Locks is an authorized Yale dealer offering expert configuration guidance, finish selection assistance, and bulk pricing. Contact our sales team at 1-877-207-6067 or sales@edlocks.com for fast quotes and technical support.
Specifications
- ANSI/BHMA Certified A156.13, Series 1000, Operational Grade 1
- UL/cUL fire rated up to 3 hours
- Windstorm certified (refer to local codes)
- Mechanism: Stainless steel
- Backset: 2-3/4 inch
- Latchbolt: 3/4 inch stainless steel throw
- Door thickness: 1-3/4 inch standard, to 3-1/4 inch thick doors to order
- Fronts: Bevel front, free-floating to adjust from flat to standard bevel of 1/8 inch in 2 inch
- Cylinders: Brass, 6-pin, keyed-random with two keys furnished standard; 7-pin available to order
- Reversibility: Field reversible handing
- Strikes: 1-1/4 inch curved lip for 1-3/4 inch door standard; other lip lengths to special order; all reversible
- Finishes: Available in 17 finishes
- Warranty: 10 year mechanical
