Description

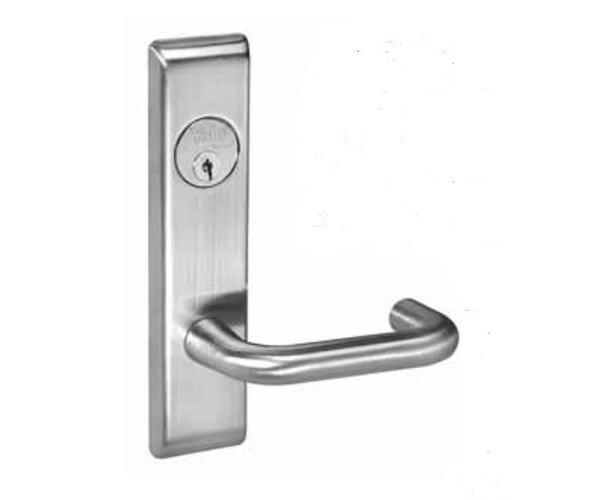

The Yale 8800 Series mortise lock delivers ANSI/BHMA Grade 1 security for commercial doors. Featuring a reinforced stainless steel deadbolt and heavy-duty, vandal-resistant trim, it's built for high-traffic applications demanding durability and strength. Field-reversible handing and quick lever installation make setup straightforward.
This lock fits standard 1-3/4 inch doors and accommodates thicker doors to 3-1/4 inches by special order. Comes with a 6-pin keyed-random cylinder and two keys; upgrade to 7-pin security available. As an authorized Yale dealer, E.D. Locks provides expert guidance on compatibility and keying. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for application support and fast delivery.
Specifications
- Brand: Yale/Accentra
- Model: CRCN8829FL 626
- Certification: ANSI/BHMA A156.13 Series 1000, Grade 1; UL/cUL fire rated up to 3 hours
- Mechanism: Stainless steel
- Backset: 2-3/4 inches
- Latchbolt: 3/4 inch stainless steel throw
- Door Thickness: 1-3/4 inches standard, to 3-1/4 inches by special order
- Front: Bevel front, free-floating, adjusts from flat to 1/8 inch bevel
- Cylinder: Brass, 6-pin keyed-random with two keys; 7-pin available
- Reversibility: Field reversible handing
- Strike: 1-1/4 inch curved lip for 1-3/4 inch doors standard; other lengths by special order; all reversible
- Finishes: 17 finishes available
- Warranty: 10 year mechanical
