Description

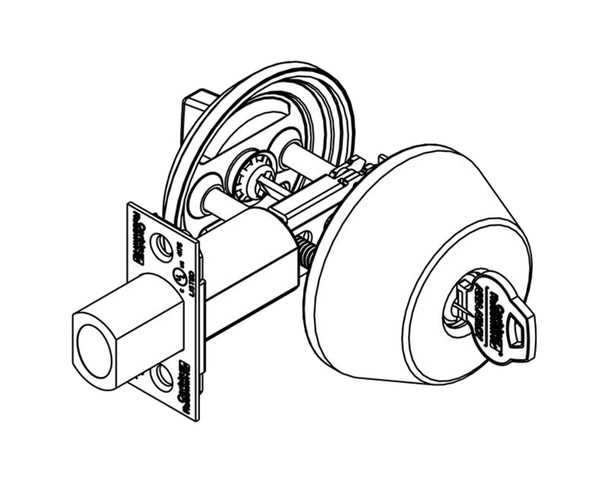

The Corbin Russwin DL2211 613 is a Grade 2 cylindrical deadlock engineered for reliable security on interior and exterior doors. It features a solid steel deadbolt with hardened, free-spinning steel pin insert and 1-inch throw, ideal for commercial, institutional, and residential applications requiring dependable access control and tamper resistance.
This deadlock installs on standard 1-3/4-inch doors with 2-3/4-inch backset; optional configurations and keying options including master keying are available. As an authorized Corbin Russwin dealer, E.D. Locks provides expert product selection, keying guidance, and installation support. Contact our team at sales@edlocks.com or 1-877-207-6067 for assistance choosing the right security solution for your project.
Specifications
- Grade: 2 (ANSI/BHMA 156.5)
- Deadbolt: 1 inch throw, solid steel with hardened free-spinning steel pin insert
- Door Thickness: Standard 1-3/4 inch (44mm); optional thicknesses available
- Backset: Standard 2-3/4 inch (70mm); optional 2-3/8 inch (60mm)
- Front: Brass or stainless steel, 2-1/4 inch (57mm) x 1-1/8 inch (29mm); optional 1 inch width
- Cylinder: 6-pin brass, L4 keyway, 0-bitted; security cylinder optional
- Strike: Standard 2-3/4 inch (70mm) x 1-1/8 inch (29mm)
- Handing: Non-handed
- Keys: Two nickel silver
- Keying Features: Master keying, construction master keying, security, visual key control, concealed key control
- Warranty: One-year limited
