Description

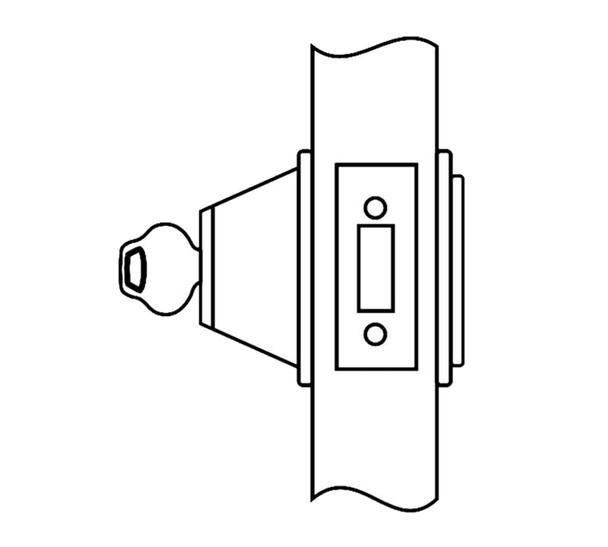

The Corbin Russwin DL3011 is a non-handed deadlock engineered for standard 1-3/4" to 2-1/4" door thicknesses. Ideal for commercial and institutional facilities, it delivers reliable keyed security with a 1" hardened steel bolt and brass cylinder. This lock solves access control and perimeter security needs for buildings requiring durable, recodable hardware.
The DL3011 accepts master keying, construction keying, interchangeable cores, and security cylinders to match your facility's key system. It installs in standard 2-3/4" backset cavities with optional 2-3/8" backset available. As an authorized Corbin Russwin dealer, E.D. Locks offers expert guidance on keying options and compatibility. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for assistance selecting the right configuration.
Specifications
- Handing: Non-handed
- Door Thickness: 1-3/4" (44mm) to 2-1/4" (57mm) standard
- Backset: 2-3/4" (70mm) standard, 2-3/8" (60mm) optional
- Front: Wrought brass or bronze, 2-1/4" x 1-1/8"
- Deadbolt: 1" throw, zinc diecast hardened steel insert, 5/8" wide x 3/4" high
- Cylinder: Brass, 6-pin, L4 keyway, 0-bitted
- Keys: Two nickel silver standard
- Keying Options: Master, construction master, 7-pin conventional, interchangeable core, security, pyramid
- Warranty: One-year limited
