Description

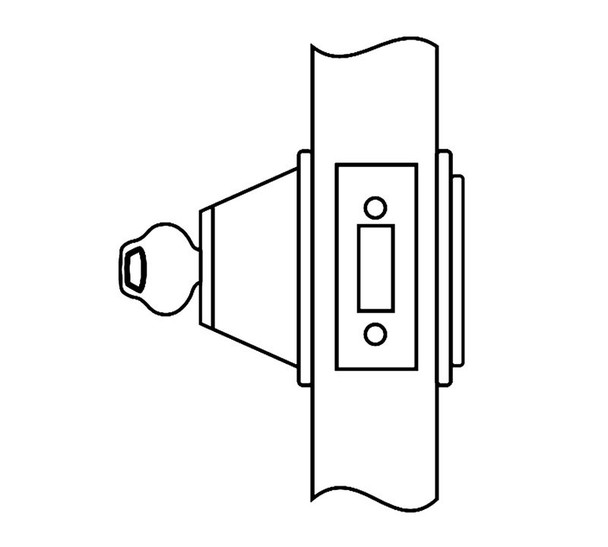

The Corbin Russwin DL3011 626 is a non-handed deadlock designed for standard 1-3/4" and 2-1/4" door thicknesses. Built for commercial and institutional facilities, this deadlock provides reliable keyed security with a 1-inch hardened steel bolt, making it ideal for interior and exterior applications where controlled access is essential.
The DL3011 626 ships standard with a 2-3/4" backset, wrought brass or bronze front, and a 6-pin L4 brass cylinder keyed alike (two keys included). Master keying, interchangeable core, and security cylinder options are available. As an authorized Corbin Russwin dealer, E.D. Locks offers expert guidance on keying, handing, and installation. Contact sales@edlocks.com or 1-877-207-6067 for assistance selecting the right configuration.
Specifications
- Handing: Non-handed
- Door Thickness: Standard 1-3/4" (44mm) or 2-1/4" (57mm)
- Backset: Standard 2-3/4" (70mm); Optional 2-3/8" (60mm)
- Front: Wrought brass or bronze, 2-1/4" x 1-1/8"
- Deadbolt: Zinc diecast hardened steel, 1" throw, 5/8" wide x 3/4" high
- Strike: 2-3/4" x 1-1/8"
- Cylinder: Brass, 6-pin, L4 keyway, 0-bitted
- Keys: Two nickel silver standard
- Keying Options: Master keying, construction master keying, interchangeable core (IC), security cylinder, visual key control, concealed key control
- Warranty: One-year limited
