Description

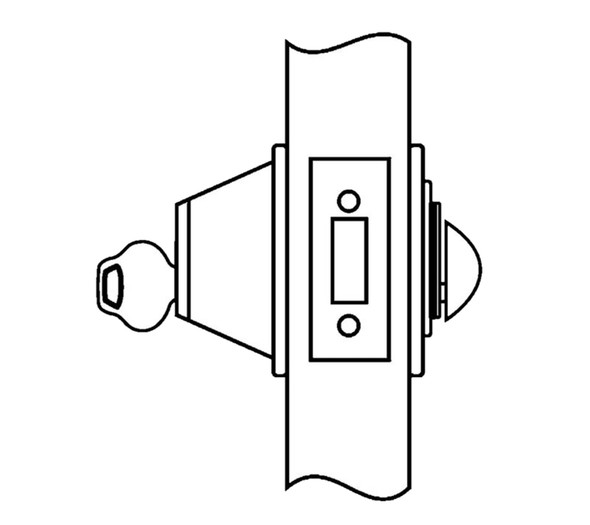

The Corbin Russwin DL3013 is a non-handed deadlock designed for standard 1-3/4" to 2-1/4" doors. It features a hardened steel deadbolt with a 1" throw, wrought brass or bronze front, and a 6-pin brass cylinder. Ideal for commercial and institutional applications where reliable, keyed deadbolt security is required.
This lock is compatible with flat and beveled doors and accepts multiple keying options including master keying, interchangeable cores, and security cylinders. As an authorized Corbin Russwin dealer, E.D. Locks offers expert configuration guidance and genuine parts. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for keying assistance and fast delivery on all orders over $450.
Specifications
- Brand: Corbin Russwin
- Model: DL3013 612 LC
- Handing: Non-handed
- Door Thickness: 1-3/4" (44mm) to 2-1/4" (57mm) standard
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Front: Wrought brass or bronze, 2-1/4" x 1-1/8"
- Deadbolt: Zinc diecast hardened steel, 1" throw
- Cylinder: Brass, 6-pin, L4 keyway, 0-bitted
- Keys: Two nickel silver standard
- Strike: 2-3/4" x 1-1/8" standard
- Keying Options: Master keying, construction master keying, interchangeable core (IC), security cylinders, visual and concealed key control available
- Warranty: One-year limited
