Description

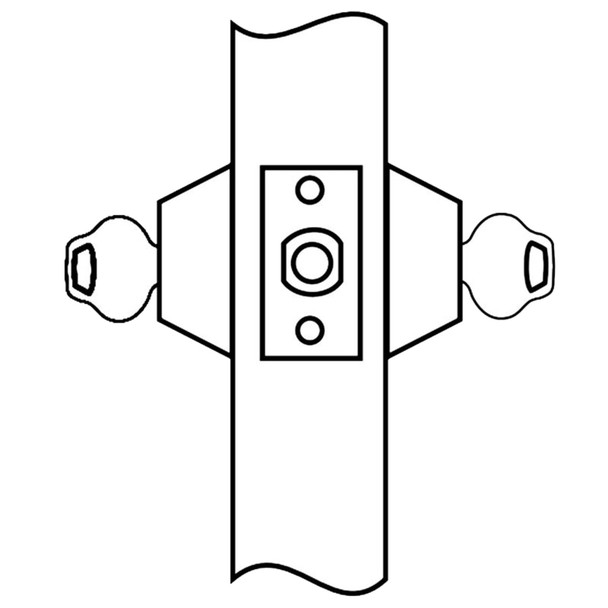

The Corbin Russwin DL3212 606 CL6 is a Grade 1 cylindrical deadlock engineered for high-security applications requiring reliable access control. Featuring a solid steel deadbolt with hardened, free-spinning steel pin insert and 1" throw, this deadlock is ideal for commercial facilities, offices, and institutional buildings where durability and tamper resistance matter.
This deadlock installs into standard 161 door prep on 1-3/4" doors (other thicknesses available) with your choice of 2-3/4" or 2-3/8" backset. It ships with a brass 6-pin cylinder, L4 keyway, 0-bitted, and two nickel silver keys; security cylinders and master keying are available. As an authorized Corbin Russwin dealer, E.D. Locks provides expert configuration guidance and fast shipping. Contact sales@edlocks.com or call 1-877-207-6067 for keying options or custom specifications.
Specifications
- Grade: 1 (ANSI/BHMA 156.5)
- Door Thickness: 1-3/4" standard; optional thicknesses available
- Backset: 2-3/4" standard; optional 2-3/8"
- Deadbolt Throw: 1"
- Front Plate: 2-1/4" x 1-1/8", brass or stainless steel (1" width optional)
- Cylinder: 6-pin, L4 keyway, brass, 0-bitted standard
- Keys: Two nickel silver standard
- Strike: 2-3/4" x 1-1/8" standard; optional strikes and wrought boxes available
- Handing: Non-handed
- UL Listed: For use with fire-rated doors
- Keying: Master keying, construction master keying, visual key control, and concealed key control available
- Warranty: One-year limited
