Description

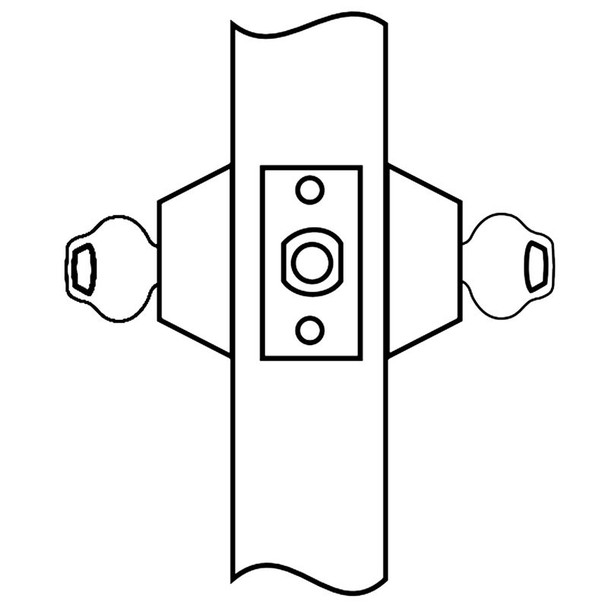

The Corbin Russwin DL3212 606 CLS7 is a Grade 1 cylindrical deadlock designed for commercial and institutional doors requiring high-security locking. It features a solid steel deadbolt with a hardened, free-spinning steel pin insert and a 1-inch throw, ideal for applications demanding ANSI 156.5 Grade 1 certification and fire-rated door compatibility.
This non-handed deadlock installs in standard 1-3/4-inch doors with 2-3/4-inch backset (2-3/8-inch optional) and accepts Pyramid cylinders for enhanced security. Compatible with master keying, visual key control, and concealed key control options. As an authorized Corbin Russwin dealer, E.D. Locks provides expert pre-sale guidance, keying consultation, and support at sales@edlocks.com or 1-877-207-6067.
Specifications
- Grade 1 (ANSI 156.5)
- 1-inch deadbolt throw
- Door thickness standard: 1-3/4 inches (44mm), optional thicknesses available
- Backset: 2-3/4 inches (70mm) standard, 2-3/8 inches (60mm) optional
- Front: 2-1/4 inches x 1-1/8 inches (57mm x 29mm) brass or stainless steel
- Cylinder: 6-pin, L4 keyway, brass standard; security cylinder optional
- Strike: 2-3/4 inches x 1-1/8 inches (70mm x 29mm) standard
- Non-handed
- UL listed for fire-rated doors
- Keying: Master key, visual key control, concealed key control available
- Keys: Two nickel silver standard
- Warranty: One-year limited
