Description

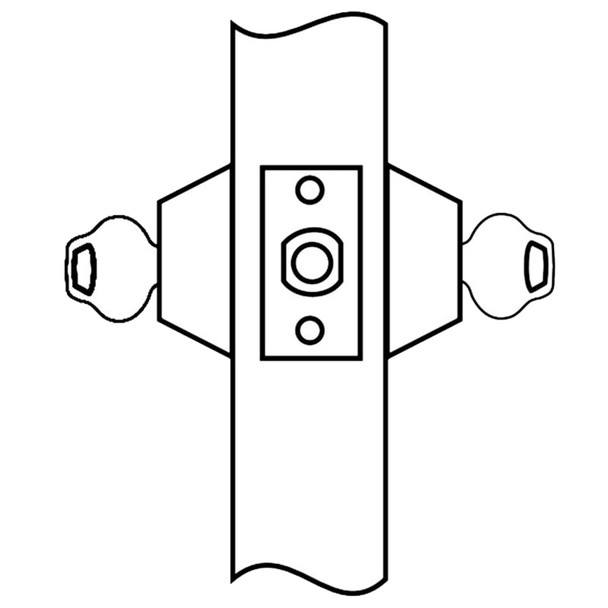

The Corbin Russwin DL3212 606 is a Grade 1 cylindrical deadlock built for commercial and institutional doors requiring maximum security. It features a solid steel deadbolt with a hardened, free spinning steel pin insert and a 1-inch throw. Ideal for entry doors, utility rooms, and high-traffic facilities, this deadlock solves the need for reliable, durable security hardware that meets strict building codes.
The DL3212 installs on standard 1-3/4-inch doors with 2-3/4-inch backset and fits ANSI 161 door prep. It is UL listed for fire-rated doors and available in brass or stainless steel finish. For keying options, master keying and security cylinders are available. As an authorized Corbin Russwin dealer, E.D. Locks provides expert installation guidance and keying support at sales@edlocks.com or 1-877-207-6067.
Specifications
- Grade: ANSI 156.5 Grade 1
- Deadbolt: 1-inch throw, solid steel with hardened free spinning pin insert
- Door Thickness: 1-3/4-inch standard (additional thicknesses available)
- Backset: 2-3/4-inch standard, 2-3/8-inch optional
- Front: 2-1/4-inch x 1-1/8-inch brass or stainless steel (1-inch width optional)
- Strike: 2-3/4-inch x 1-1/8-inch standard
- Cylinder: 6-pin brass, L4 keyway, 0-bitted standard
- Handing: Non-handed
- Keys: Two nickel silver standard
- Keying: Master keying available; security and concealed key control options
- Fire Rating: UL listed for fire-rated doors
- Warranty: One-year limited
