Description

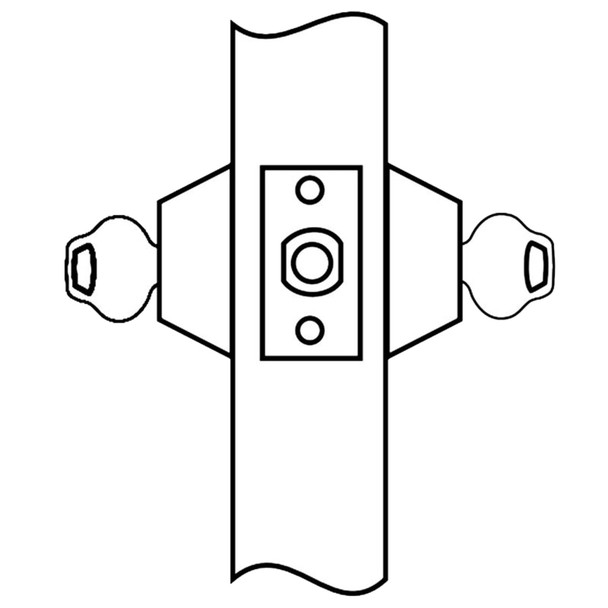

The Corbin Russwin DL3212 625 is a Grade 1 cylindrical deadlock engineered for high-security commercial and institutional applications. Featuring a solid steel deadbolt with hardened, free-spinning steel pin insert and 1 inch throw, it solves the need for reliable perimeter security on doors requiring superior strength and durability.
This deadlock installs on standard 1-3/4 inch door thickness with 2-3/4 inch backset, compatible with 161 door prep. It is UL listed for fire-rated doors and available with master keying options. As an authorized Corbin Russwin dealer, E.D. Locks provides expert configuration assistance and keying guidance. Contact sales@edlocks.com or 1-877-207-6067 for specification details and to ensure correct handing and cylinder selection for your project.
Specifications
- Grade: 1 (ANSI/BHMA 156.5)
- Deadbolt: Solid steel, 1 inch throw
- Door Thickness: 1-3/4 inch standard
- Backset: 2-3/4 inch standard; 2-3/8 inch optional
- Front: 2-1/4 inch x 1-1/8 inch (brass or stainless steel)
- Cylinder: 6-pin, L4 keyway, 0-bitted brass standard
- Strike: 2-3/4 inch x 1-1/8 inch standard
- Handing: Non-handed
- Door Prep: Standard 161
- UL Listed: Fire-rated doors
- Keys: Two nickel silver standard
- Warranty: One-year limited
