Description

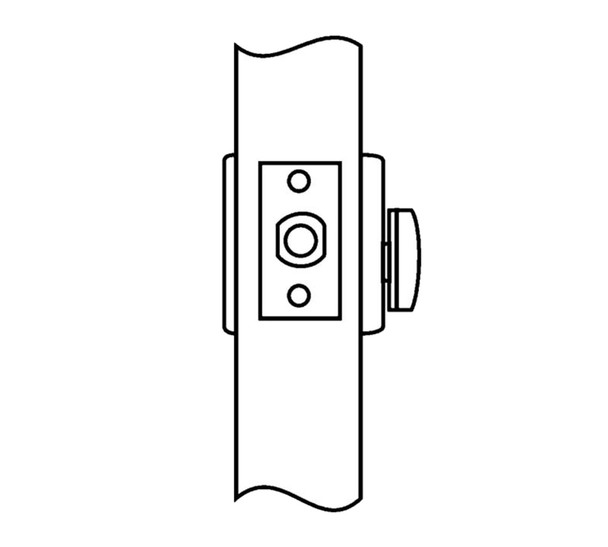

The Corbin Russwin DL3260 606 is a Grade 1 cylindrical deadlock built for commercial and institutional doors requiring maximum security. It features a solid steel deadbolt with hardened, free spinning steel pin insert and a 1" throw. Ideal for high-traffic entries, this non-handed lock suits a variety of applications and is UL listed for fire-rated doors.
Standard 1-3/4" door thickness with optional sizes available; 2-3/4" backset standard. Compatible with standard 161 door prep and brass or stainless steel fronts. Keying options include master keying and security cylinders. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for specification guidance, keying assistance, or volume pricing.
Specifications
- Grade: 1 (ANSI 156.5)
- Door Thickness: 1-3/4" standard (44mm); optional sizes available
- Backset: 2-3/4" standard (70mm); optional 2-3/8" (60mm)
- Deadbolt Throw: 1"
- Front: Brass or stainless steel, 2-1/4" x 1-1/8" (57mm x 29mm); optional 1" width
- Cylinder: Brass, 6-pin, L4 keyway, 0-bitted standard; security cylinder optional
- Strike: 2-3/4" x 1-1/8" (70mm x 29mm) standard; optional strikes and wrought boxes available
- Handing: Non-handed
- Keys: Two nickel silver standard
- Keying: Master keying, construction master keying, security visual key control, concealed key control available
- UL Listed: Fire-rated door compatible
- Warranty: One-year limited
