Description

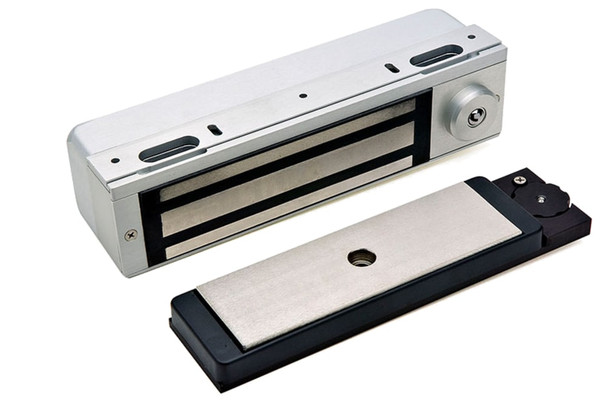

The DynaLock 3101C DSM LP is a single electromagnetic maglock designed for high-security applications requiring life safety code compliance. It addresses the need for controlled egress on outswing doors by holding them magnetically closed while allowing emergency exit through a managed delay timer. Ideal for secure facilities balancing access control with safety requirements.
This maglock integrates with existing mechanical door hardware and features a 15-second delay (field-selectable to 30 seconds) before release, with audible and LED indicators. Compatible with fire alarm systems for automatic emergency unlock. For proper installation, keying configuration, and integration with your building's security system, contact our expert team at sales@edlocks.com or 1-877-207-6067 to ensure full compliance and optimal performance.
Specifications
- Series: DynaLock 3000 Series
- Type: Electromagnetic Maglock
- Model: 3101C DSM LP
- Function: Delayed Egress with Door Sensor Switch
- Activation Pressure: 15 lbs or less
- Delay Timer: 15 seconds (field-selectable to 30 seconds)
- Indicators: Audible alarm and red/green LED
- Features: Fire alarm integration, key switch reset/bypass, surge resistance
