Description

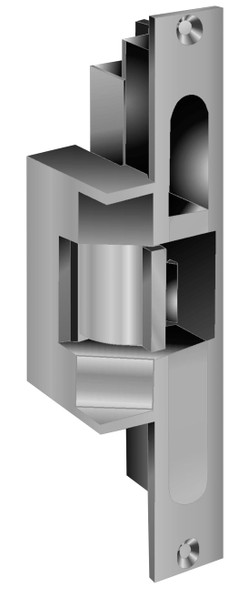

Folger Adam 310-3-1 24D 630 24VDC Fail Safe Electric Strike
- 300 Series Electric Strike
- 24vdc, .25 Amps, Fail Secure
- 1 Inch Keeper
- Satin Stainless Steel
The 310 Series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications. The all stainless steel construction of this device makes it ideal for high abuse applications that would disable other electric strikes. This electric strike is for use with bored locks, mortise l0cks and mortise exit devices having a 1/2'' or 5/8'' throw latchbolt (without deadbolt) on single and pairs of doors.
| 310-2 | For a 1/2" or 5/8" throw latchbolt (without deadbolt) on single and pairs of doors. 1/2" keeper standard |
| 310-2-3/4 | For a 3/4" throw latchbolt (without deadbolt) on single and pairs of doors. 3/4" keeper standard |
| 310-2-3/4OB | For a pair of doors, without a door coordinator, which are equipped with a lock having a 3/4" throw latchbolt (without deadbolt). 3/4" keeper standard |
| 310-3-1 | For a lockset with both a 3/4" throw latchbolt and a 1" throw deadbolt.
1" keeper standard |
Specifications
- CAN4-S104 (ULC-S104) fire door conformant
- UL1034, burglary-resistant listed
- UL 294 (6th Edition) listed
- ANSI/BHMA A156.31, Grade 1
- New York City accepted
- NFPA-252 fire door conformant
- ASTM-E152 fire door conformant
- RoHS compliant
Electrical
- .51 Amps @ 12VDC continuous duty
- .25 Amps @ 24VDC continuous duty
Standard Features
- Tamper resistant, heavy-duty construction
- Constructed entirely of stainless steel for strength and corrosion resistance
- Static strength 1,500 lbs.
- Dynamic strength 70 ft-lbs.
- Endurance rating 500,000 cycles
- Horizontally adjustable keeper to allow for door and frame misalignment
- 1/2" keeper depth
- Non-handed
- Fail Secure (standard)
- Plug-in connector
- Five year limited warranty
Optional Features
- Fail Safe
- LCBMA - Latchbolt & Locking Cam Monitor with Auxiliary Switch (all except 310-2 3/4OB)
Finishes
- 630 - Satin stainless steel
- 605 - Bright brass
- 606 - Satin brass
- 612 - Satin bronze
- 613 - Bronze toned
- 629 - Bright stainless steel
