Description

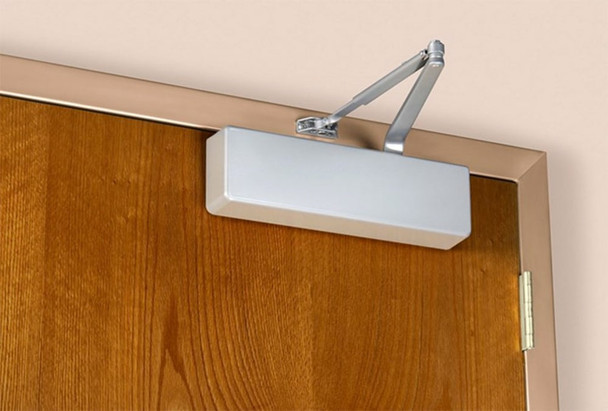

The Norton JL7500 689 is a heavy-duty surface-mounted door closer designed for interior and exterior doors in commercial facilities demanding reliable performance. With over 25 million cycle durability, rack-and-pinion construction, and cast aluminum body, it handles demanding high-traffic environments while maintaining consistent operation in temperatures from -40°F to extreme heat.
This non-handed closer installs on either door hand and projects only 2-3/16 inches from the door surface. Independent latch, sweep, and backcheck valves allow hex-key adjustment of closing speed and intensity across six spring power settings. Compatible with standard door frames; E.D. Locks provides expert sizing and installation guidance at sales@edlocks.com or 1-877-207-6067 to ensure optimal performance and compliance with your facility requirements.
Specifications
- Model: JL7500 689
- Brand: Norton
- Type: Surface-mounted, rack-and-pinion door closer
- Cycles: 25 million+
- Body Material: Cast aluminum alloy
- Projection: 2-3/16 inches (55mm)
- Hand: Non-handed (universal)
- Spring Power: Adjustable sizes 1-6
- Valves: Independent latch, sweep, and backcheck (hex-key adjustable)
- Temperature Range: -40°F to extreme heat
- Fastener Material: Stainless steel
- Delayed-Action: Adjustable hex-key valve
- Corrosion Resistance: Aluminum, brass, and stainless steel external components
- Certification: Environmental Product Declaration (EPD) certified
