Description

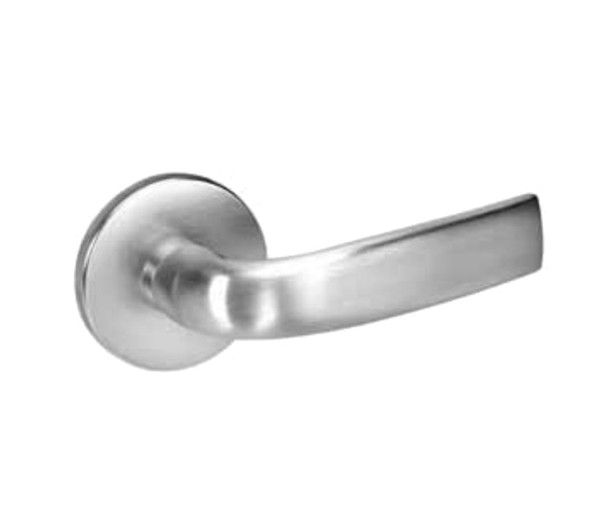

The Yale 8800 Series mortise lock delivers commercial-grade security for interior and exterior doors. Built with a reinforced stainless steel deadbolt and heavy-duty, vandal-resistant trim, this ANSI/BHMA Grade 1 certified lock suits hospitals, offices, schools and multi-family buildings requiring durability and strength that withstands high-traffic use.
The JNR8824FL accommodates standard 1-3/4" doors with a 2-3/4" backset, field-reversible handing, and 3/4" stainless steel latchbolt throw. UL/cUL fire-rated up to 3 hours and backed by a 10-year mechanical warranty. Contact our team at sales@edlocks.com or 1-877-207-6067 for handing confirmation, finish selection from 17 options, and expert installation guidance.
Specifications
- Brand: Yale/Accentra
- Series: 8800 Mortise Lock
- Certification: ANSI/BHMA A156.13, Series 1000, Grade 1
- Fire Rating: UL/cUL up to 3 hours
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (up to 3-1/4" to order)
- Cylinder: 6-pin brass, keyed-random, 2 keys included
- Reversibility: Field reversible handing
- Strike: 1-1/4" curved lip for 1-3/4" door (reversible)
- Finishes: 17 available
- Warranty: 10 years mechanical
