Description

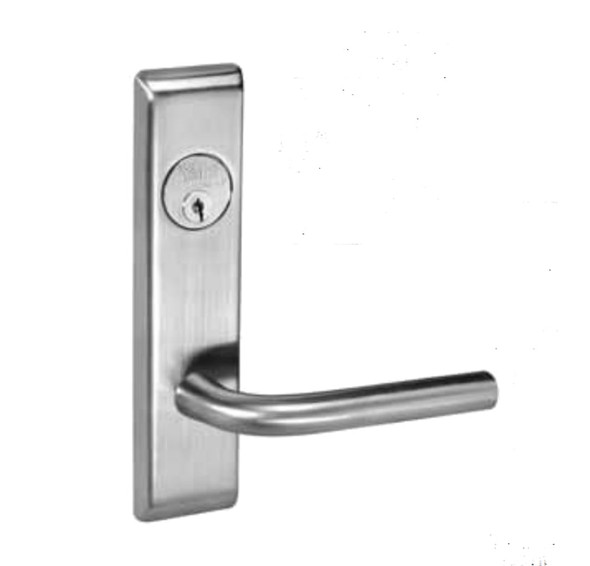

The Yale 8800 Series mortise lock delivers ANSI/BHMA Grade 1 certified security for commercial doors. Built with reinforced stainless steel deadbolts and vandal-resistant trim, this lock suits offices, retail, hospitality and institutional facilities requiring durable, long-life performance across a range of applications.
Field-reversible handing and adjustable latchbolt simplify installation on 1-3/4" to 3-1/4" thick doors. Compatible with standard 6-pin cylinders (7-pin available). As an authorized Yale dealer, E.D. Locks provides expert specification support and keying guidance. Contact us at sales@edlocks.com or 1-877-207-6067 for compatibility questions or finish selection from 17 available options.
Specifications
- ANSI/BHMA A156.13, Series 1000, Grade 1 certified
- UL/cUL fire rated up to 3 hours
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door thickness: 1-3/4" standard, up to 3-1/4" available
- Mechanism: Stainless steel
- Cylinders: Brass, 6-pin keyed-random (7-pin available)
- Field reversible handing
- Bevel front with 1/8" adjustment in 2"
- Standard curved lip strike for 1-3/4" doors
- Available in 17 finishes
- 10-year mechanical warranty
