Description
The Schlage L9080B is an extra heavy-duty mortise lock engineered for high-traffic commercial environments including schools, hospitals, and factories. This ANSI Grade 1 certified lock combines robust security with reliable daily operation, featuring a fully wrapped steel case, zinc-plated internal components, and a two-piece anti-friction tongue designed to withstand constant use and abuse.
The L9080B accommodates ten functions in a single universal case with field-reversible handing, adjustable floating tabs for beveled doors, and a fail-secure fusible link for fire safety. Compatible with standard mortise lock trim and installations, this lock is backed by E.D. Locks' expert team. Contact sales@edlocks.com or call 1-877-207-6067 for keying options, specification verification, and installation guidance from an authorized Schlage dealer.
Specifications

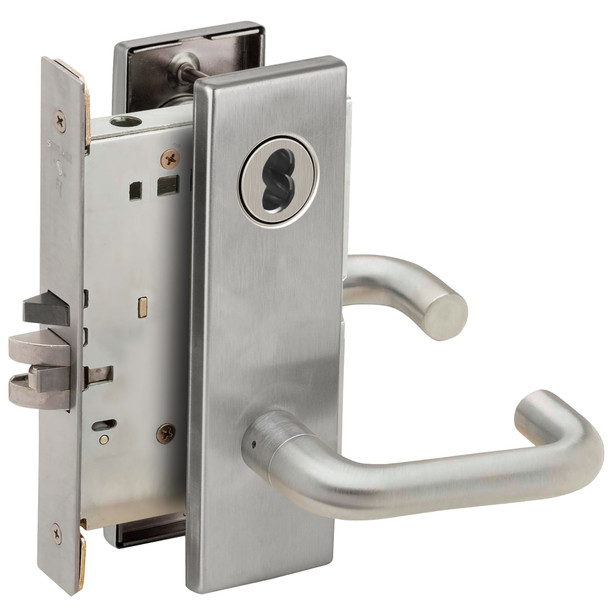

- Model: L9080B 03N 626
- Finish: Satin Chrome (626)
- Grade: ANSI Grade 1
- Case: Heavy-gauge, fully wrapped steel
- Internal Parts: Zinc dichromate-plated
- Functions: Ten functions in one case
- Handing: Field-reversible without opening lock case
- Security Feature: Break-away spindle, hub blocking plate
- Fire Safety: Spring-loaded fusible link, fail-secure mode
- Mounting: Floating tabs for beveled door adjustment
