Description

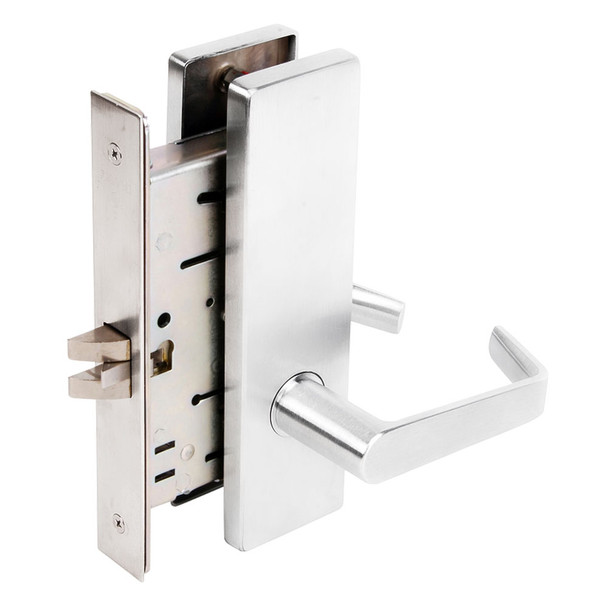

The Falcon MA101 DN 625 is a heavy-duty mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. It combines security with durability, featuring a two-piece stainless steel latch bolt with mechanical anti-friction design and a 1-inch throw dead bolt with saw-resistant rollers. The interchangeable core (SFIC compatible) enables quick re-keying without removing the lock from the door.
This lock accommodates door thicknesses from 1-3/8 to 2-1/2 inches and meets ANSI/BHMA 156.13 Series 1000 standards with a 3-hour UL A label. It's available in multiple finishes and electrified options (12 or 24 VDC). As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, handing, and installation. Contact sales@edlocks.com or call 1-877-207-6067 for personalized support.
Specifications
- Door Thickness: 1-3/8 to 2-1/2 inches
- Backset: 2-3/4 inch
- Case: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional; reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway (standard cylinder); A keyway (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4 inch projection
- Dead Bolt: 1 inch throw, stainless steel with saw-resistant rollers (13/16 inch diameter)
- Faceplates: 1-1/4 x 8 inches, brass or stainless steel, adjustable for door bevel
- Electrified Functions: Available 12 or 24 VDC
- Certifications: ANSI/BHMA 156.13 Series 1000; UL 3 hour A label; ANSI A115.1
