Description

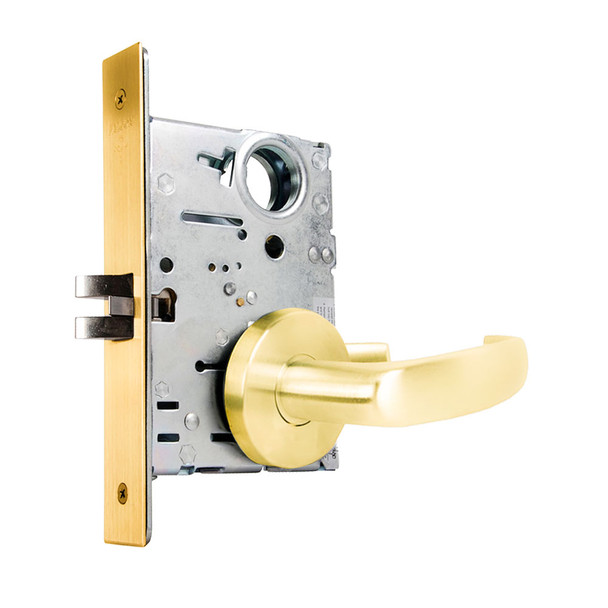

The Falcon MA101 QG mortise lock is a high-performance, commercial-grade solution for offices, hospitals, education facilities, and institutional buildings. Built for constant use without fail, this durable lock delivers reliable security and easy maintenance through its removable interchangeable core, compatible with SFIC products from other manufacturers.
The MA101 QG fits standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset and ships with two nickel silver keys. Reversible handing accommodates both left and right hand doors. For expert guidance on keying options, finish selection, or technical specifications, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: 3/4" projection, two-piece stainless steel
- Deadbolt: 1" throw with two 13/16" hardened steel saw-resistant rollers
- Faceplate: 1-1/4" x 8" adjustable for door bevel
- Cylinders: Solid brass, 5/6/7-pin standard or interchangeable core options
- Keyway: G keyway standard on cylinder, A keyway on I/C cylinder
- Handing: Right hand standard, left hand optional, field reversible
- Electrified Functions: Available 12 or 24 VDC
- ANSI/BHMA: Meets 156.13, Series 1000
- UL: 3 hour A label
