Description

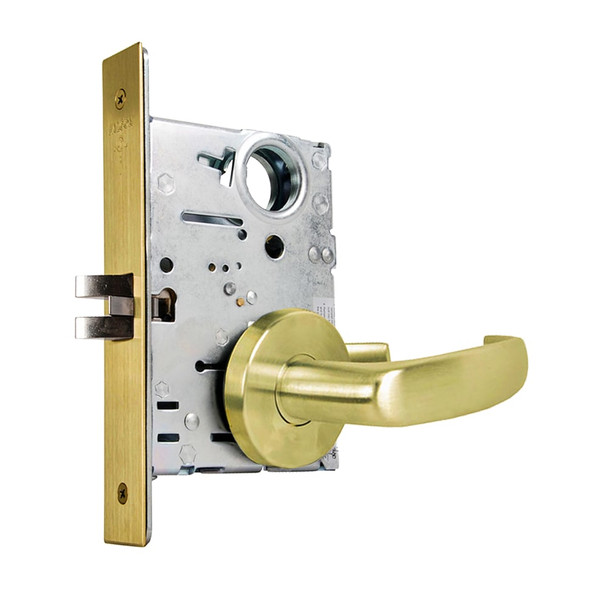

The Falcon MA101 QG 606 is a heavy-duty mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. This ANSI/BHMA Series 1000 lock combines security with reliability, featuring a two-piece stainless steel latch bolt, 1-inch throw deadbolt with saw-resistant rollers, and cold-formed steel case rated for constant use without failure.
The MA101 accommodates standard door thickness of 1-3/8 inches to 2-1/2 inches with a 2-3/4-inch backset. Its interchangeable core design enables fast re-keying and SFIC compatibility with other manufacturers' products. Both right-hand and left-hand configurations are available and field-reversible. For expert guidance on keying options, specifications, or installation, contact E.D. Locks at sales@edlocks.com or 1-877-207-6067.
Specifications
- Door Thickness: 1-3/8 inches to 2-1/2 inches
- Backset: 2-3/4 inches
- Case: Cold formed steel, zinc dichromate plated, 0.090 inches thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Latch Bolt: Two-piece stainless steel, 3/4-inch projection
- Deadbolt: 1-inch throw, stainless steel with hardened steel saw-resistant rollers
- Faceplates: 1-1/4 inches x 8 inches, brass or stainless steel, adjustable for door bevel
- Handing: Right hand standard; left hand optional, field-reversible
- ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000
- UL Rating: 3-hour A label
- Electrified Functions: Available in 12 or 24 VDC
