Description

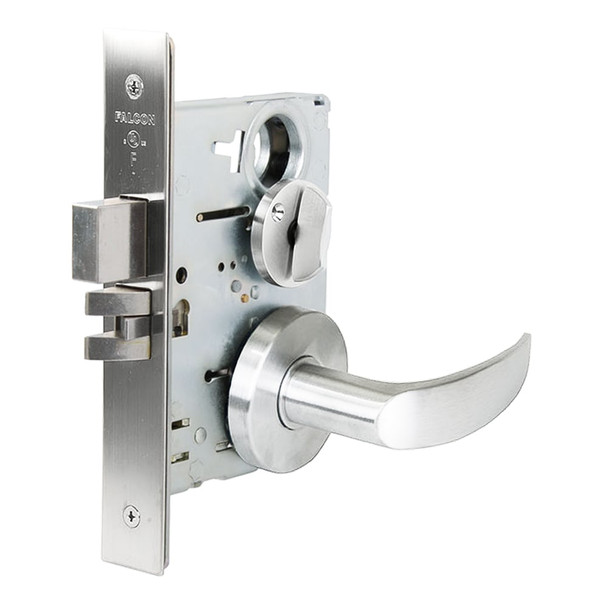

The Falcon MA301 AG 625 mortise lock is a high-performance, commercial-grade lock engineered for offices, hospitals, educational facilities, and other demanding environments. Built for reliability and constant use, this dependable lock combines security with durability and features an interchangeable core (SFIC compatible) for quick, tool-free re-keying without removing the lock from the door.
The MA301 accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour fire ratings. It is reversible in the field and available in multiple keyway and cylinder pin options. As an authorized Falcon dealer, E.D. Locks provides expert guidance on specification, keying, and installation. Contact sales@edlocks.com or call 1-877-207-6067 for personalized support.
Specifications
- Brand: Falcon (Allegion)
- Model: MA301 AG 625
- Type: Mortise lock with interchangeable core
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold-formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass; 5, 6, or 7-pin standard; 6 or 7-pin I/C
- Keyway: "G" keyway standard ("A" on I/C)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8", adjustable for door bevel
- Electrified: Available 12 or 24 VDC
- Certifications: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Handing: Right-hand standard; left-hand optional; reversible
- Finish: AG (Satin Chrome)
