Description

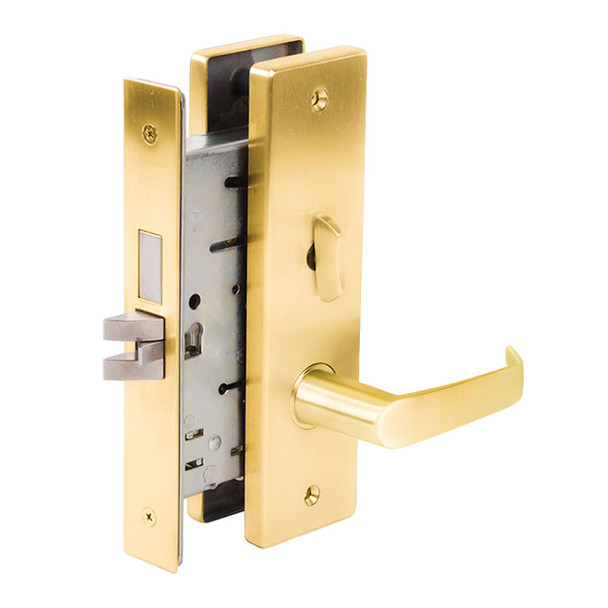

The Falcon MA301 mortise lock is a high-performance commercial locking solution for office, hospital, education, and institutional facilities. It delivers dependable security and durability for doors experiencing constant use, featuring a two-piece stainless steel latch bolt with 3/4" projection and a 1" deadbolt with saw-resistant rollers. The interchangeable core design allows fast re-keying without lock removal.
The MA301 accommodates door thickness from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour A label requirements. Right-hand handing is standard; left-hand is optional and reversible in the field. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, finish selection, and electrified options. Contact sales@edlocks.com or call 1-877-207-6067 for compatibility questions or to discuss your project needs.
Specifications
- Brand: Falcon
- Model: MA301 DN 605
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, .090" thick
- Latch Bolt: 3/4" projection, two-piece stainless steel with mechanical anti-friction
- Deadbolt: 1" throw, stainless steel with two 13/16" saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Handing: Right hand standard; left hand optional, field reversible
- Faceplate: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Electrified: Available 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label, ANSI A115.1 strike
- Included: Two nickel silver keys
