Description

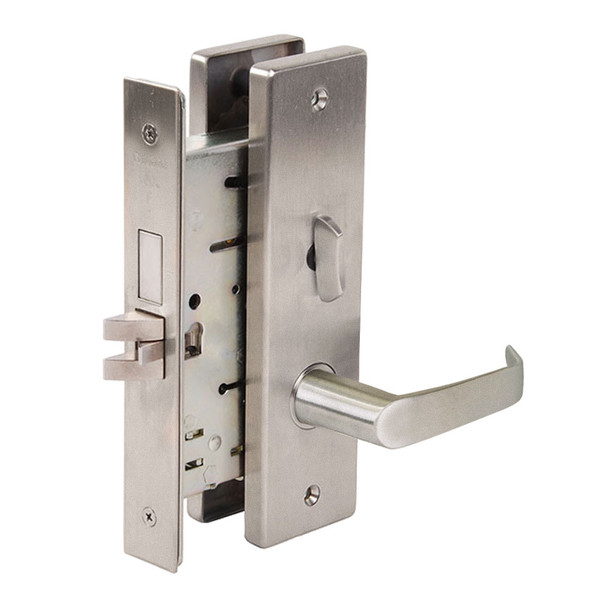

The Falcon MA301 DN 630 is a heavy-duty mortise lock built for commercial environments including offices, hospitals, and educational facilities. It combines reliable security with interchangeable core technology for quick re-keying, making it ideal for organizations seeking dependable access control without constant maintenance headaches.
This lock accommodates standard door thicknesses of 1-3/8" to 2-1/2" and features a 2-3/4" backset. It's compatible with SFIC products and available in right or left hand configurations, reversible in the field. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on handing, keying options, and electrified configurations.
Specifications
- Brand: Falcon
- Model: MA301 DN 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway standard, A keyway on I/C cylinder
- Strike: Brass or stainless steel, ANSI A115.1 compliant
- Electrified: Available 12 or 24 VDC
- Rating: ANSI/BHMA 156.13 Series 1000, UL 3 hour A label
