Description

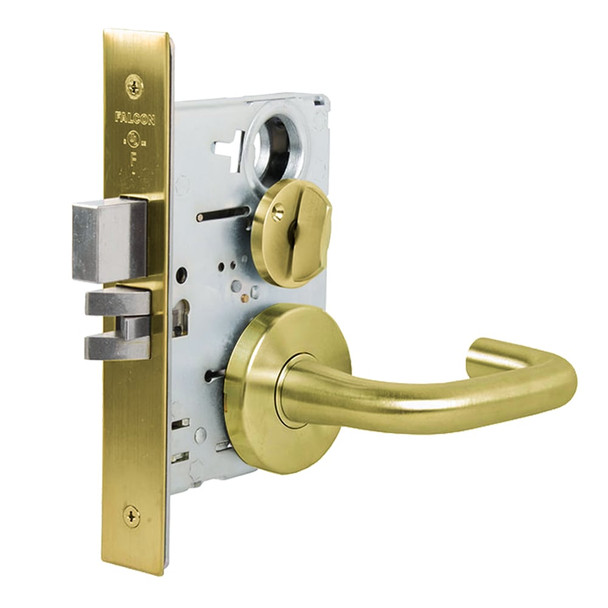

The Falcon MA301 SG mortise lock delivers high-performance security for commercial applications including offices, hospitals, and educational facilities. Built tough for constant use, this dependable lock features an interchangeable core for quick re-keying and is compatible with SFIC products from other manufacturers, making retrofit and maintenance simple.
Compatible with door thickness 1-3/8" to 2-1/2" and standard 2-3/4" backset. Right-hand handing ships standard; left-hand and field reversibility are available. As an authorized Falcon dealer, E.D. Locks offers expert guidance on specification, keying options, and installation. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for personalized assistance.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional; reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway standard cylinder; A keyway standard I/C cylinder
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed, meets ANSI A115.1
- Electrified: Available 12 or 24 VDC
- ANSI/BHMA: Series 1000
- UL: 3 hour A label
