Description

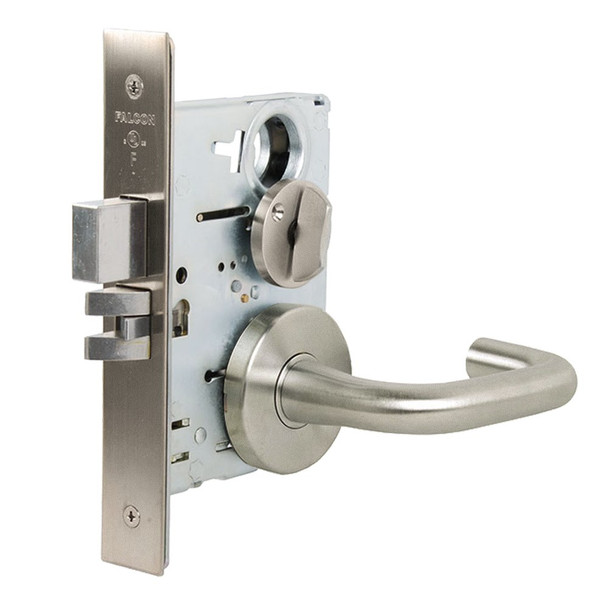

The Falcon MA301 SG 630 is a heavy-duty mortise lock built for commercial environments including offices, hospitals, and educational facilities. Featuring a mechanical anti-friction latch and saw-resistant dead bolt, it delivers dependable security through constant use. The interchangeable core design enables quick re-keying and SFIC compatibility with other manufacturers' products.
This lock accommodates standard door thickness of 1-3/8" to 2-1/2" with a 2-3/4" backset. It meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour UL A label for maximum security assurance. Contact an authorized E.D. Locks specialist at sales@edlocks.com or 1-877-207-6067 for expert guidance on handing, keying options, and electrified configurations.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Electrified: Available 12 or 24 VDC
