Description

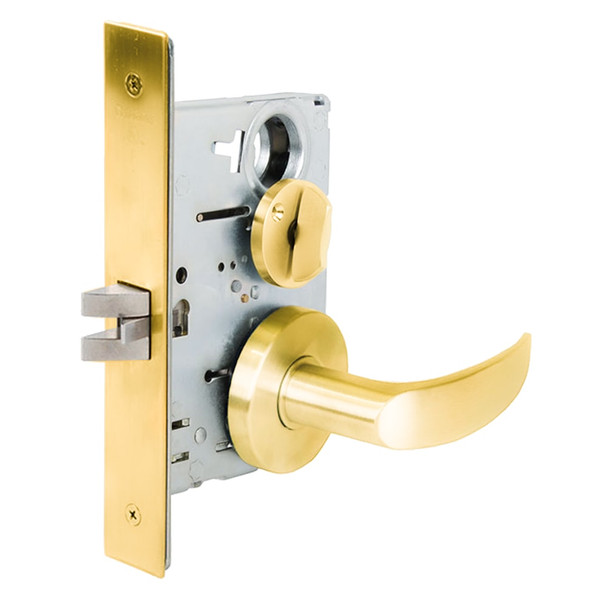

The Falcon MA321 AG 605 is a heavy-duty mortise lock built for commercial environments: offices, hospitals, schools, and institutions requiring reliable security and constant-use durability. Its two-piece stainless steel latch bolt with anti-friction design and 1-inch throw dead bolt with saw-resistant rollers provide dependable everyday performance without fail.
This SFIC interchangeable core lock accommodates door thickness 1-3/8 inch to 2-1/2 inch and accepts Falcon or compatible SFIC cylinders for fast re-keying. Right-hand handing is standard; left-hand and field-reversible options available. As an authorized Allegion dealer, E.D. Locks provides expert support for specification, keying, and installation. Contact sales@edlocks.com or 1-877-207-6067 with questions.
Specifications
- Brand: Falcon (Allegion)
- Model: MA321 AG 605
- Type: Mortise Lock
- Door Thickness: 1-3/8 inch to 2-1/2 inch
- Backset: 2-3/4 inch
- Case: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional; reversible
- Cylinders: Solid brass; 5, 6, or 7-pin standard; 6 or 7-pin SFIC available
- Keyway: G keyway standard cylinder; A keyway SFIC
- Furnished: Two nickel silver keys
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4 inch projection
- Dead Bolt: 1 inch throw stainless steel with two 13/16 inch hardened steel saw-resistant rollers
- Faceplate: 1-1/4 inch x 8 inch brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed, meets ANSI A115.1
- Electrified: 12 or 24 VDC available
- ANSI/BHMA: 156.13, Series 1000
- UL: 3 hour A label
