Description

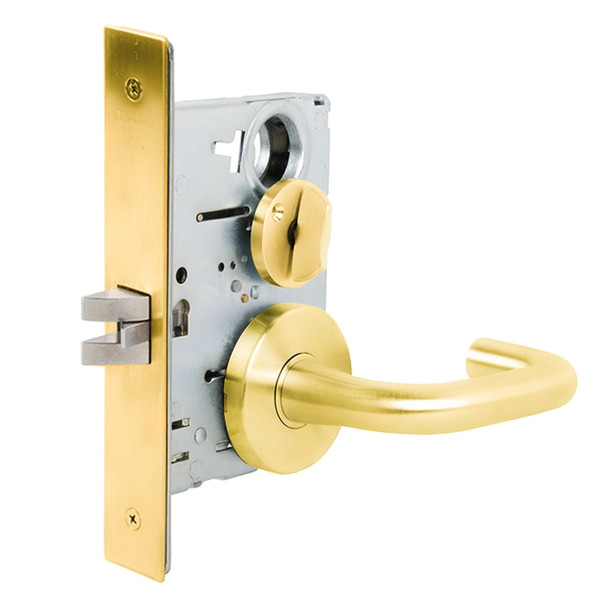

The Falcon MA321 SG 605 is a heavy-duty mortise lock built for commercial environments including offices, hospitals, and educational facilities. It features a 1-inch stainless steel deadbolt with saw-resistant rollers and a two-piece anti-friction latch bolt, designed to withstand constant use while delivering reliable security and smooth operation.
This lock accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and uses SFIC interchangeable cores for quick re-keying without removing the lock body. It meets ANSI/BHMA Series 1000 and UL 3-hour fire rating standards. As an authorized Falcon dealer, E.D. Locks provides expert guidance on handing, keying, and electrification options. Contact our sales team at 1-877-207-6067 or sales@edlocks.com for compatibility questions.
Specifications
- Brand: Falcon
- Model: MA321 SG 605
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Cylinder: Solid brass, 5, 6 or 7-pin available
- Keyways: "G" standard (standard cylinder), "A" standard (interchangeable core)
- Handing: Right hand standard, left hand optional, reversible
- Faceplate: 1-1/4" x 8" brass or stainless steel
- Strike: Brass or stainless steel, ANSI A115.1 compliant
- ANSI/BHMA Rating: Series 1000
- Fire Rating: UL 3-hour A label
- Electrified: Available in 12 or 24 VDC
