Description

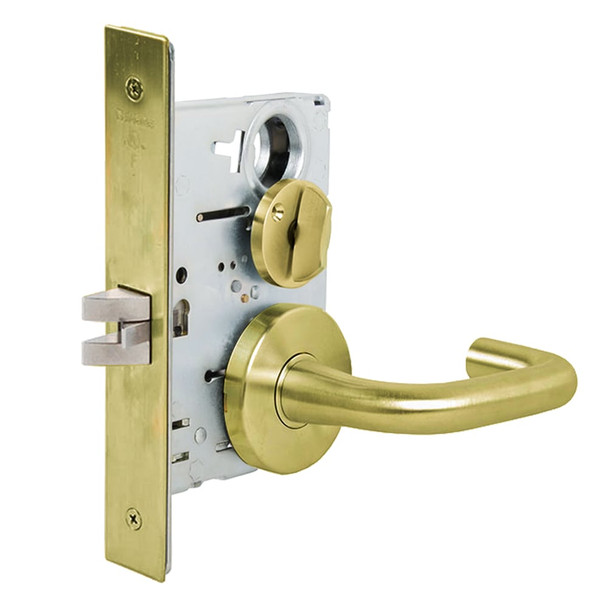

The Falcon MA321 is a heavy-duty mortise lock designed for high-traffic commercial environments including offices, hospitals, and educational facilities. Built with cold-formed steel and hardened steel components, it delivers reliable security and durability through constant daily use, backed by Allegion's reputation for quality.
This lock features an interchangeable core (SFIC-compatible) for quick re-keying and accommodates door thicknesses from 1-3/8" to 2-1/2". It's reversible in the field and available in electrified versions. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying options, handing, and finishes. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for application support and fast shipping on orders over $450.
Specifications
- Brand: Falcon
- Model: MA321 SG 606
- Door thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6 or 7-pin standard; 6 or 7-pin interchangeable core
- Latch bolt: Two-piece stainless steel, 3/4" projection
- Dead bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8", brass or stainless steel, adjustable for bevel
- Electrified: 12 or 24 VDC available
- Standard: Includes two nickel silver keys
- Certification: ANSI/BHMA 156.13 Series 1000, UL 3 hour A label
