Description

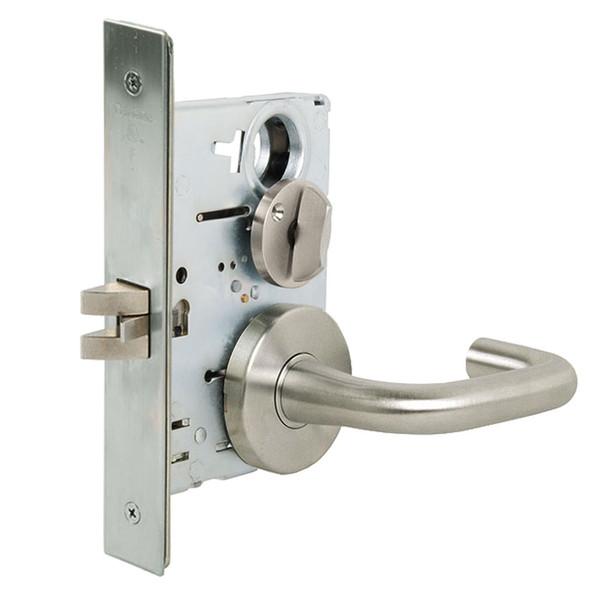

The Falcon MA321 SG 630 mortise lock is a heavy-duty commercial lock designed for offices, hospitals, schools, and institutional buildings that demand reliable security and durability. Its cold-formed steel case, hardened steel hubs, and stainless steel bolts withstand constant use without failure, while the interchangeable core (SFIC-compatible) allows quick re-keying without removing the lock.
This lock fits standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour requirements. Right-hand handing is standard; left-hand and field-reversible options are available. Contact our authorized Falcon dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, installation, and electrified options.
Specifications
- Brand: Falcon
- Model: MA321 SG 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand and field-reversible optional
- Cylinders: Solid brass; 5, 6, or 7-pin available (6 or 7-pin for interchangeable core)
- Keys: Two nickel silver keys standard
- Keyways: G keyway standard (A keyway standard on I/C cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with two 13/16" saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed, ANSI A115.1 compliant
- Electrified Functions: Available in 12 or 24 VDC
- ANSI/BHMA: Meets 156.13, Series 1000
- UL Rating: 3 hour A label
