Description

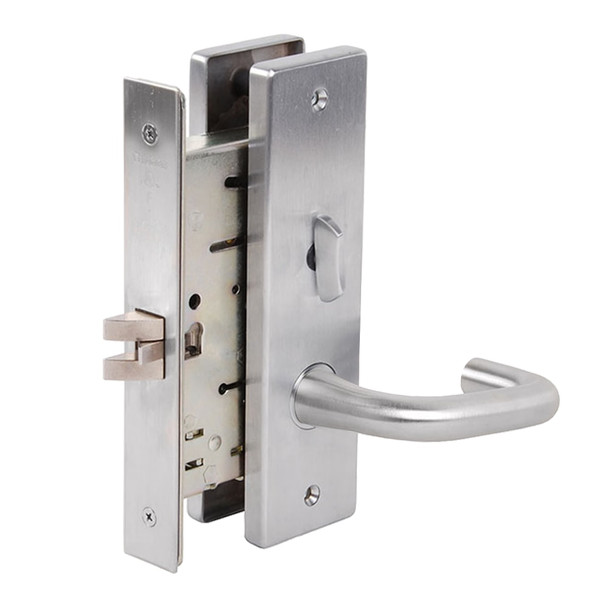

The Falcon MA321 SN 626 is a commercial-grade mortise lock engineered for offices, hospitals, educational facilities, and high-traffic environments. Built from cold-formed steel with hardened steel hubs and a mechanical anti-friction latch, this lock delivers reliable security and durability through constant daily use without compromising performance.
This mortise lock accommodates door thicknesses from 1-3/8" to 2-1/2" and features a 2-3/4" backset. The interchangeable core (SFIC-compatible) enables quick field re-keying without removing the lock body. Right-hand handing is standard; left-hand and field-reversible options are available. For expert guidance on keying, handing, or installation, contact E.D. Locks at sales@edlocks.com or 1-877-207-6067, where our authorized dealer team can ensure proper fit and specification.
Specifications
- Brand: Falcon
- Model: MA321
- Finish: Satin Chrome (SN 626)
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold-formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Dead Bolt: 1" throw stainless steel with two 13/16" diameter hardened steel, free-turning, saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyways: G keyway (standard cylinder) or A keyway (I/C cylinder)
- Handing: Right-hand standard, left-hand optional, field-reversible
- Electrified Functions: Available in 12 or 24 VDC
- ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000
- UL Rating: 3-hour A label
- Includes: Two nickel silver keys
