Description

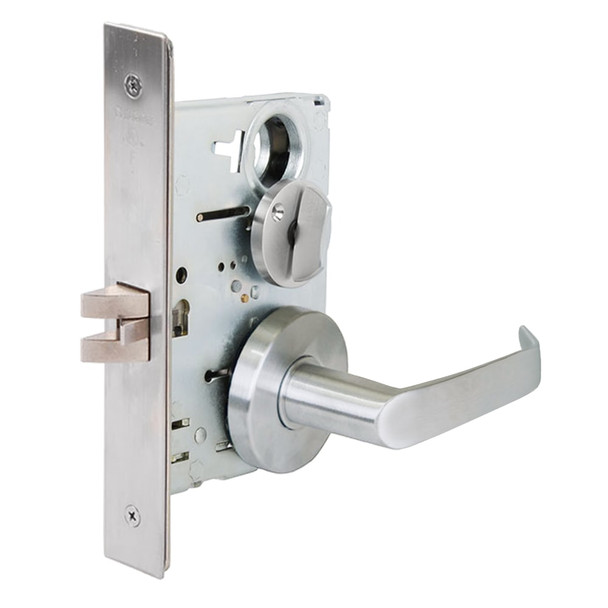

The Falcon MA321 DG mortise lock delivers high-performance security for commercial offices, hospitals, education facilities, and institutional buildings. Built tough for constant use, this ANSI/BHMA Series 1000 lock features a mechanical anti-friction latch bolt, 1-inch throw deadbolt with saw-resistant rollers, and interchangeable core capability for quick re-keying without lock removal.
Compatible with standard 1-3/8" to 2-1/2" door thickness and SFIC products from other manufacturers. Available in right or left hand, reversible in the field. Choose from 5, 6, or 7-pin cylinders with G or A keyways, plus optional 12 or 24 VDC electrified functions. Contact our authorized dealer experts at sales@edlocks.com or 1-877-207-6067 for keying assistance and project support.
Specifications
- Brand: Falcon
- Model: MA321 DG 626
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway (standard cylinder), A keyway (I.C. cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Finishes: Brass or stainless steel options
- Electrified: Available 12 or 24 VDC
- Standard Handing: Right hand; left hand optional
- ANSI/BHMA: Meets 156.13, Series 1000
- UL: 3 hour A label
- Supplied With: Two nickel silver keys
