Description

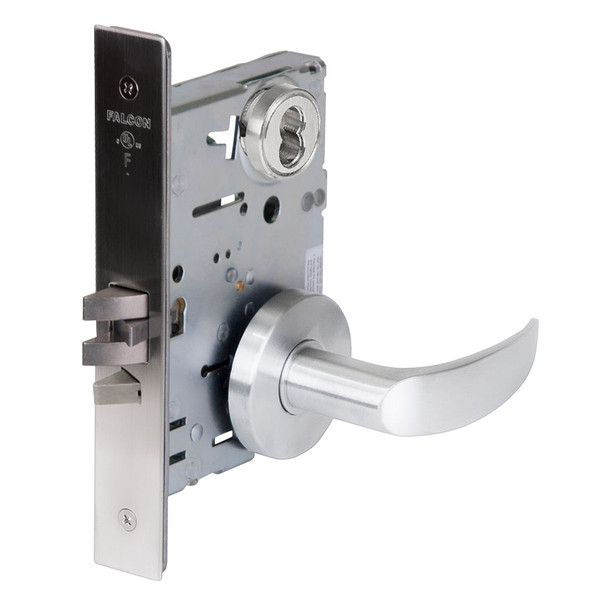

The Falcon MA381B is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This Series 1000 lock combines security with durability, featuring a two-piece stainless steel latch bolt, 1-inch dead bolt with saw-resistant rollers, and interchangeable core (SFIC) design for fast re-keying without removing the lock from the door.
The MA381B accommodates standard door thickness of 1-3/8" to 2-1/2" with a 2-3/4" backset and ships right-hand (field-reversible). It meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour UL label for fire-rated applications. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for keying options, electrified configurations, and expert guidance on your commercial project.
Specifications
- Brand: Falcon (Allegion)
- Model: MA381B AG 625 RH
- Lock Type: Mortise, Series 1000
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Handing: Right Hand (field-reversible)
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Cylinder: Solid brass, interchangeable core compatible (SFIC)
- Faceplates: 1-1/4" x 8", armored brass or stainless steel
- Strike: Brass or stainless steel, non-handed
- Certifications: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Electrified: Available in 12 or 24 VDC
