Description

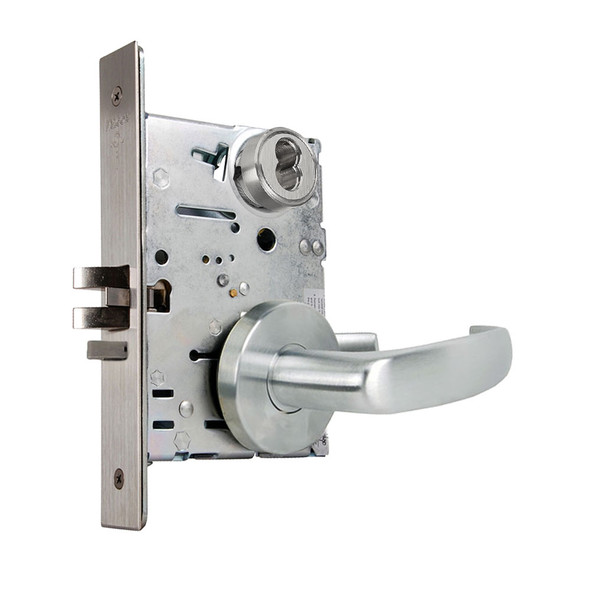

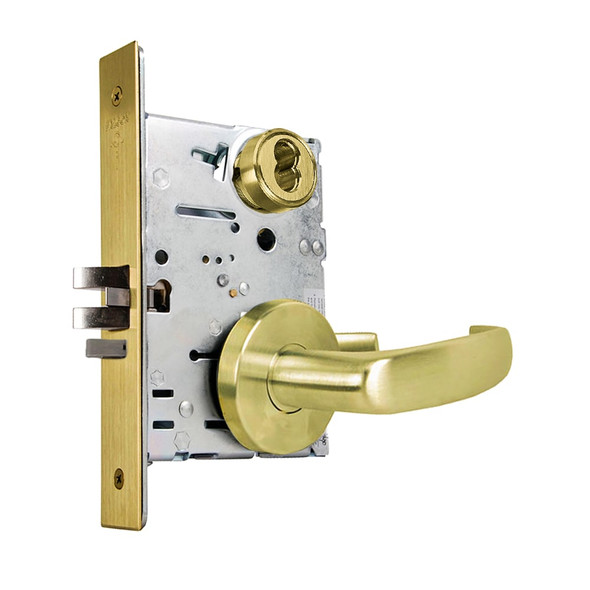

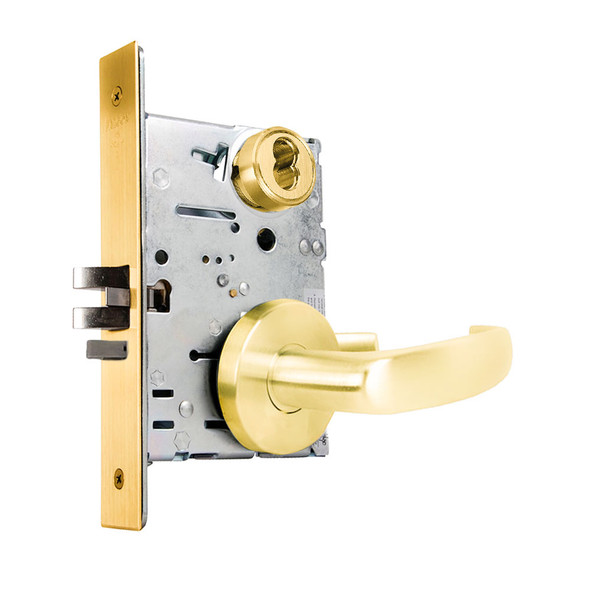

The Falcon MA381B is a commercial mortise lock engineered for high-traffic office, hospital, and educational facilities. This durable ANSI/BHMA Series 1000 lock combines dependable security with interchangeable core technology for cost-effective re-keying, making it ideal for retrofit projects and facilities requiring flexible key management.
The MA381B accommodates standard door thickness of 1-3/8" to 2-1/2" with a 2-3/4" backset. Its cold-formed steel case, stainless steel bolts with saw-resistant rollers, and SFIC compatibility ensure long-term performance. As an authorized Allegion dealer, E.D. Locks provides expert guidance on handing, keying, and electrified options at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Falcon (Allegion)
- Model: MA381B
- Finish: QG (Satin Stainless Steel)
- Handing: Right Hand (RH)
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold-formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw with saw-resistant rollers
- Faceplates: 1-1/4" x 8" (armored front)
- Cylinders: Solid brass, 5/6/7-pin standard or interchangeable core (6/7-pin)
- Keyway: G-keyway standard
- ANSI/BHMA: 156.13 Series 1000
- UL Rating: 3 Hour A Label
- Electrified Options: 12 or 24 VDC available
