Description

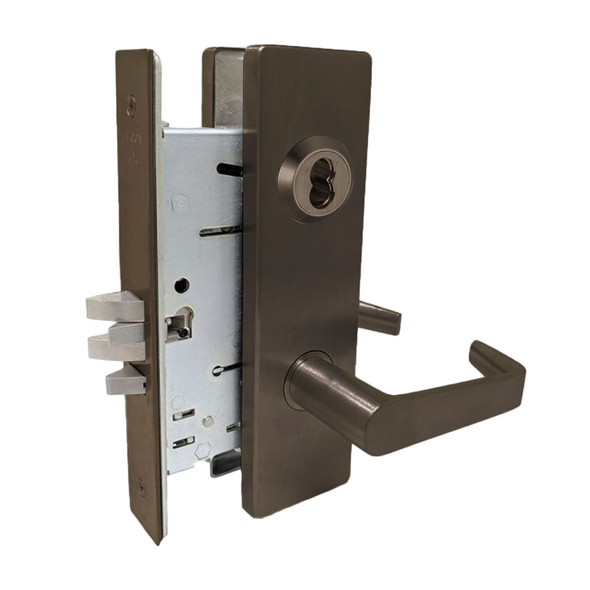

The Falcon MA381B is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This durable ANSI/BHMA Series 1000 lock combines a mechanical anti-friction latch, 1-inch throw deadbolt with saw-resistant rollers, and an interchangeable core (SFIC) for fast re-keying without removing the lock body.
The MA381B accommodates standard door thickness (1-3/8" to 2-1/2") with a 2-3/4" backset and 3/4" latch projection. It features cold-formed steel construction, brass or stainless steel faceplates and strike, and reversible field handing. For expert guidance on keying, finish selection, or electrified options (12 or 24 VDC available), contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Falcon (Allegion)
- Model: MA381B
- Finish: DN 625 (Satin Chrome)
- Handing: Right Hand
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Latch Projection: 3/4"
- Deadbolt Throw: 1"
- Case Material: Cold-formed steel, zinc dichromate plated, 0.090" thick
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyway: G (standard) or A (interchangeable core)
- Keys Furnished: Two nickel silver keys
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, meets ANSI A115.1
- Certification: ANSI/BHMA 156.13 Series 1000, UL 3 hour A label
- Electrified Options: 12 or 24 VDC available
