Description

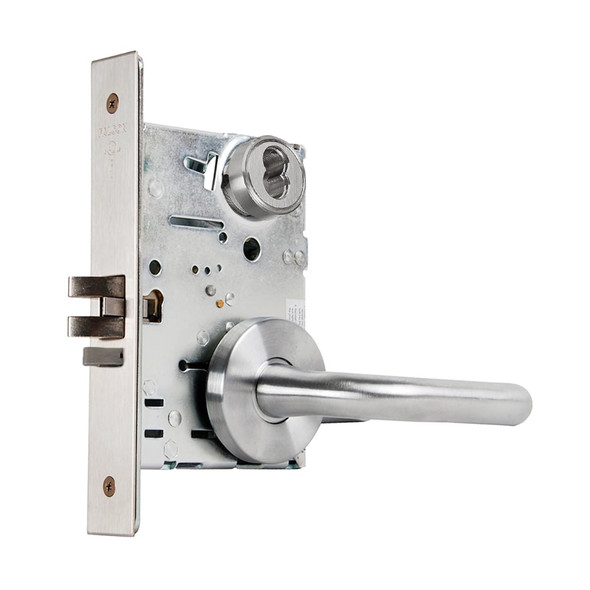

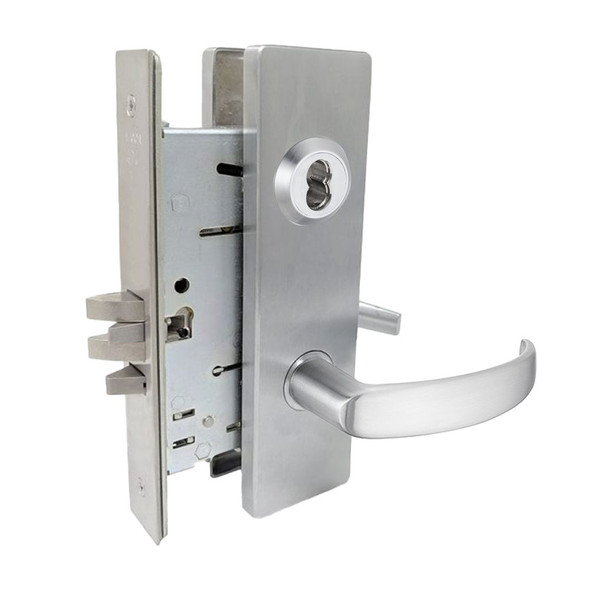

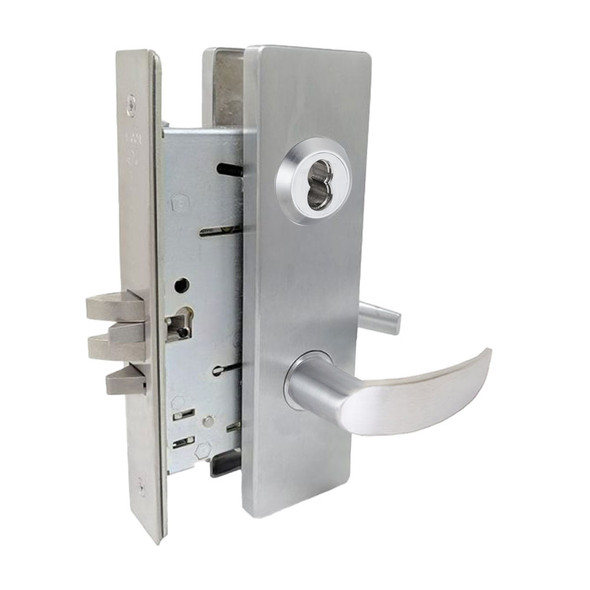

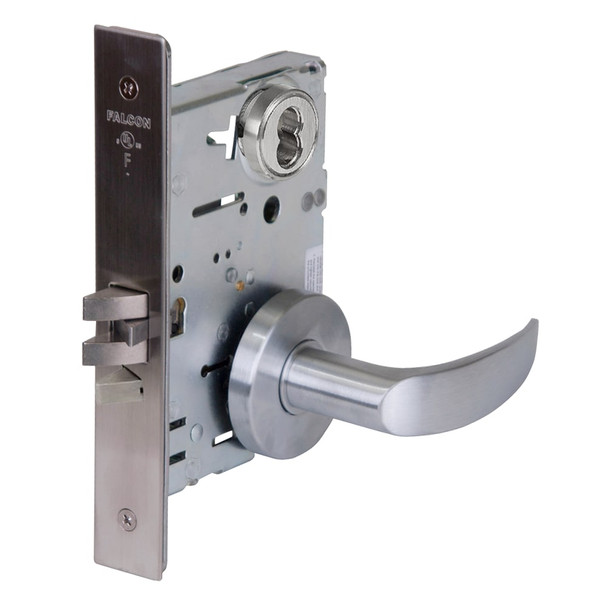

The Falcon MA381B is a heavy-duty mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. It combines security with reliability, featuring a two-piece stainless steel latch bolt, a 1-inch throw dead bolt with saw-resistant rollers, and an interchangeable core for quick re-keying. Built to withstand constant use without fail.
This right-hand mortise lock fits standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 standards with a 3-hour UL label. Compatible with SFIC interchangeable cores from other manufacturers. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, electrified functions, and installation support.
Specifications
- Brand: Falcon
- Model: MA381B AG 626 RH
- Type: Mortise Lock
- Handing: Right Hand (reversible in field)
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin on I/C
- Keyways: G (standard cylinder), A (I/C cylinder)
- Keys Furnished: Two nickel silver keys
- Faceplate: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Strike: Brass or stainless steel, ANSI A115.1 compliant
- Electrified: Available 12 or 24 VDC
- ANSI/BHMA: 156.13 Series 1000
- UL Rating: 3 hour A label
