Description

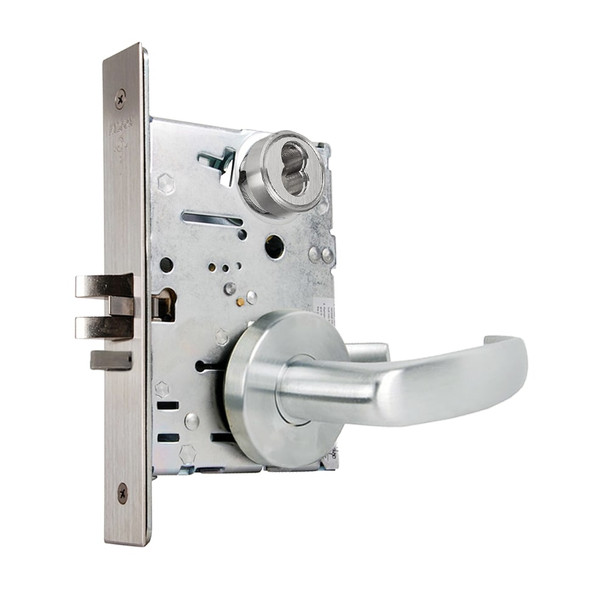

The Falcon MA381B is a mortise lock built for high-traffic commercial environments including offices, hospitals, and educational facilities. This tough, dependable lock delivers security and reliability through constant daily use, featuring an interchangeable core for quick re-keying and SFIC compatibility with other manufacturers' products.
The MA381B fits standard door thickness from 1-3/8" to 2-1/2" and installs with a 2-3/4" backset. It meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour UL fire rating. As an authorized Falcon dealer, E.D. Locks offers expert guidance on keying options, electrified configurations, and field reversibility. Contact sales@edlocks.com or call 1-877-207-6067 for specification confirmation and installation support.
Specifications
- Brand: Falcon
- Model: MA381B
- Finish: 626 (Satin Chrome)
- Handing: Right Hand
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Latch Bolt: 3/4" projection, two-piece stainless steel
- Dead Bolt: 1" throw with saw-resistant rollers
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyway: G (standard), A (interchangeable core)
- ANSI/BHMA Rating: 156.13, Series 1000
- UL Rating: 3 hour A label
- Electrified: Available 12 or 24 VDC
- Strike: Brass or stainless steel, ANSI A115.1 compliant
