Description

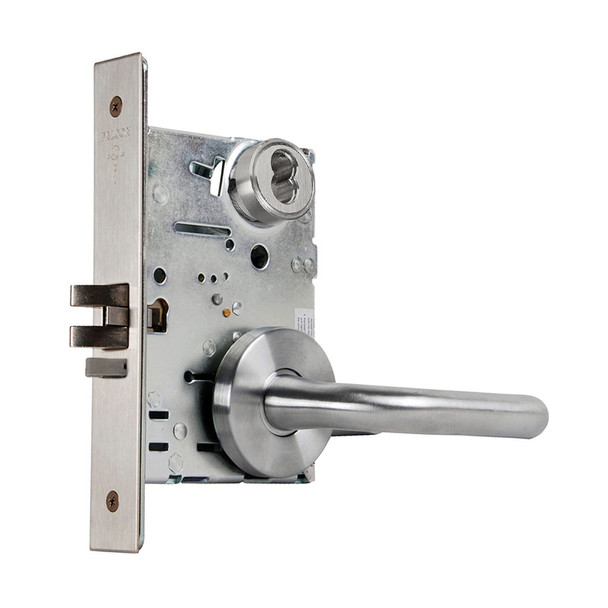

The Falcon MA381B mortise lock delivers high-performance security for commercial offices, hospitals, educational facilities, and similar institutions. Built for constant use without fail, this dependable lock features an interchangeable core for quick re-keying and is compatible with SFIC products from other manufacturers, making retrofits straightforward.
The MA381B accommodates door thickness of 1-3/8" to 2-1/2" with a 2-3/4" backset and includes a stainless steel latch bolt and anti-friction dead bolt with saw-resistant rollers. Right-hand handing is standard; left-hand and electrified options are available. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, installation, and finish selection.
Specifications
- Door thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional; reversible in field
- Cylinders: Solid brass; 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway standard (standard cylinder); A keyway standard (I/C cylinder)
- Latch bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Dead bolt: 1" throw, stainless steel with hardened steel, saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Electrified functions: Available 12 or 24 VDC
- ANSI/BHMA: 156.13, Series 1000
- UL: 3 hour A label
