Description

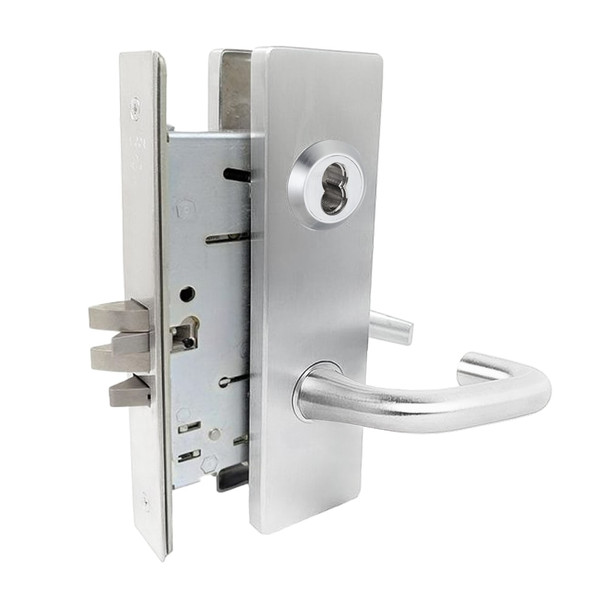

The Falcon MA381B is a heavy-duty mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. This interchangeable core lock combines security with ease of maintenance, featuring a mechanical anti-friction latch and a 1-inch throw dead bolt with saw-resistant rollers ideal for high-traffic applications.
The MA381B accommodates standard door thicknesses of 1-3/8" to 2-1/2" and features a 2-3/4" backset. It is reversible in the field and compatible with SFIC products from other manufacturers. As an authorized Allegion/Falcon dealer, E.D. Locks provides expert support for specification, keying, and installation questions. Contact sales@edlocks.com or 1-877-207-6067 for personalized assistance.
Specifications
- Brand: Falcon
- Model: MA381B
- Finish: Satin Nickel (626)
- Handing: Right Hand
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with 13/16" diameter hardened steel saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin available (standard); 6 or 7-pin available (interchangeable core)
- Keyways: G (standard cylinder), A (interchangeable core)
- Keys Furnished: Two nickel silver keys
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000
- UL: 3 hour A label
- Electrified Functions: Available in 12 or 24 VDC
