Description

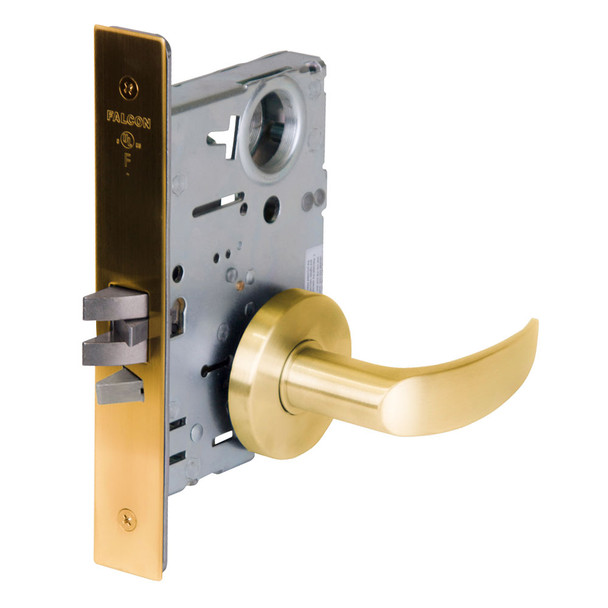

The Falcon MA411L AG 605 is a commercial mortise lock engineered for offices, hospitals, educational facilities, and high-traffic environments. This heavy-duty lock combines security with reliability, featuring a two-piece stainless steel latch bolt, one-inch dead bolt with saw-resistant rollers, and cold-formed steel construction that withstands constant use without compromise.
The MA411L accommodates door thickness from 1-3/8 inch to 2-1/2 inch with a 2-3/4 inch backset, and its interchangeable core design enables quick field re-keying using SFIC-compatible cylinders. As an authorized Falcon dealer, E.D. Locks provides expert support and specification guidance. Contact sales@edlocks.com or call 1-877-207-6067 for keying options, finish selection, and installation assistance.
Specifications
- Door Thickness: 1-3/8 inch to 2-1/2 inch
- Backset: 2-3/4 inch
- Case: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4 inch projection
- Dead Bolt: 1 inch throw stainless steel with saw-resistant rollers
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway standard (A keyway on I/C cylinder)
- Faceplate: 1-1/4 inch x 8 inch brass or stainless steel, armored front
- Electrified Functions: 12 or 24 VDC available
- Handing: Right hand standard; left hand and field-reversible options
- ANSI/BHMA: Series 1000
- UL: 3 hour A label
