Description

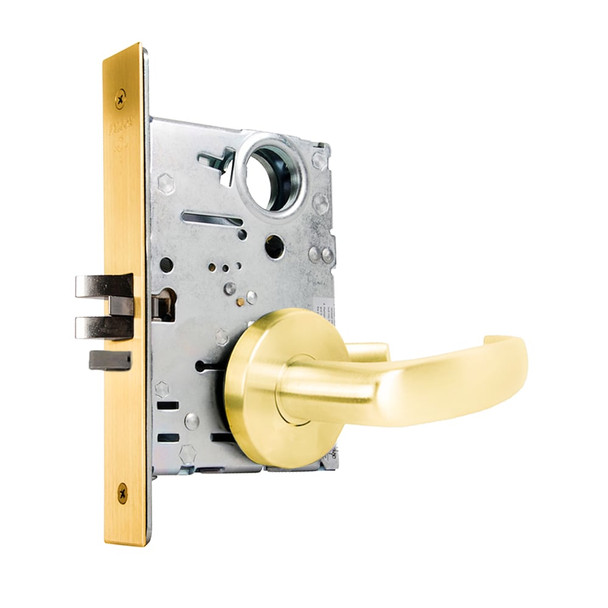

The Falcon MA411L QG 605 is a commercial mortise lock engineered for high-traffic office, hospital, and educational facilities. This Series 1000 lock combines security with durability, featuring a stainless steel latch bolt with anti-friction design and a 1-inch dead bolt with saw-resistant rollers. Built to withstand constant use without fail, it delivers dependable performance at an affordable cost.
The MA411L accommodates door thickness from 1-3/8" to 2-1/2" with a 2-3/4" backset and includes an interchangeable core (SFIC-compatible) for quick re-keying. Furnished with two nickel silver keys and available in 12 or 24 VDC electrified functions. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, handing, and installation. Contact sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6 or 7-pin standard; 6 or 7-pin on I/C
- Keyways: G keyway standard; A keyway on I/C
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with two 13/16" diameter saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Strike: Brass or stainless steel, meets ANSI A115.1
- Electrified: Available 12 or 24 VDC
- ANSI/BHMA: Series 1000, meets ANSI/BHMA 156.13
- UL: 3 hour A label
