Description

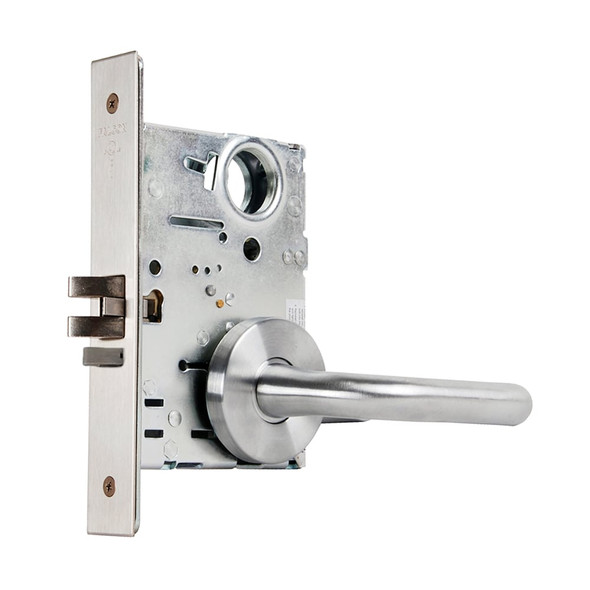

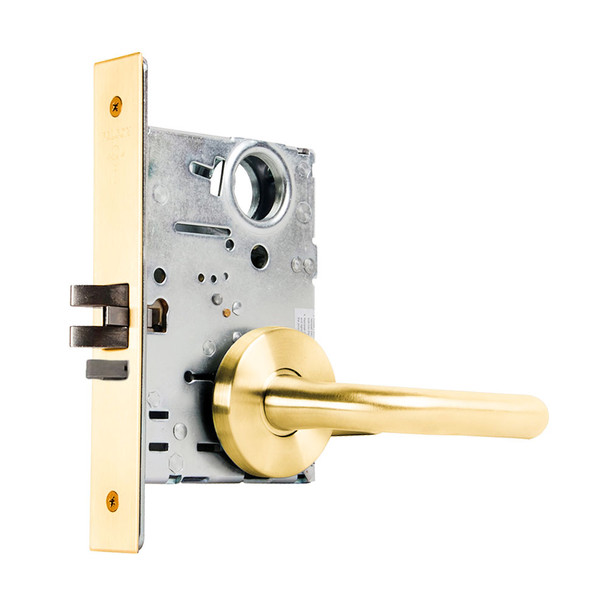

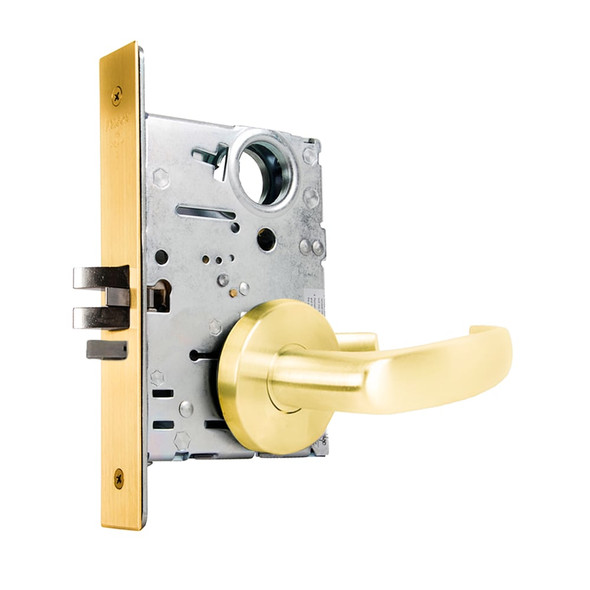

The Falcon MA411L SG 605 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This dependable lock combines security with durability, featuring an interchangeable core (SFIC compatible) for quick re-keying without removing the lock body, solving costly downtime during key management changes.
Designed for standard 1-3/8" to 2-1/2" door thickness with a 2-3/4" backset, this ANSI/BHMA Series 1000 lock meets stringent commercial standards and carries a 3-hour UL fire rating. As an authorized Allegion dealer, E.D. Locks provides expert installation guidance and key system setup—call 1-877-207-6067 or email sales@edlocks.com for personalized support.
Specifications
- Brand: Falcon (Allegion)
- Model: MA411L SG 605
- Lock Type: Mortise lock with interchangeable core (SFIC)
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Cylinders: Solid brass, 5/6/7-pin standard; 6/7-pin IC available
- Keyway: G-keyway standard (A-keyway on IC)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Electrified: 12 or 24 VDC available
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Handing: Right hand standard; left hand and field-reversible options
- Includes: Two nickel silver keys standard
