Description

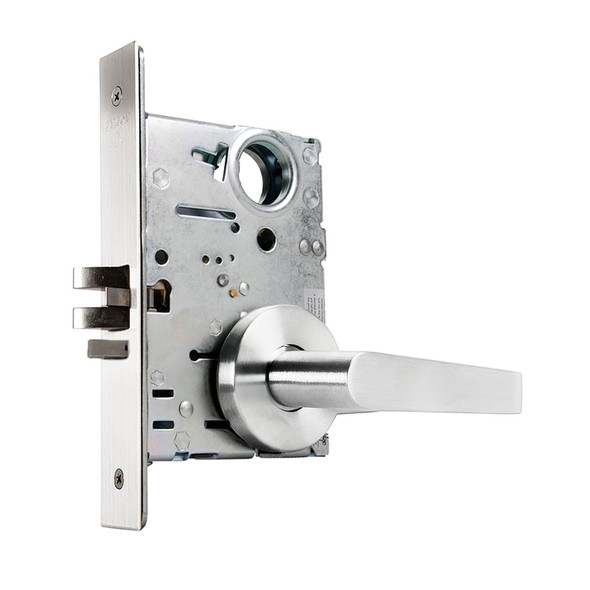

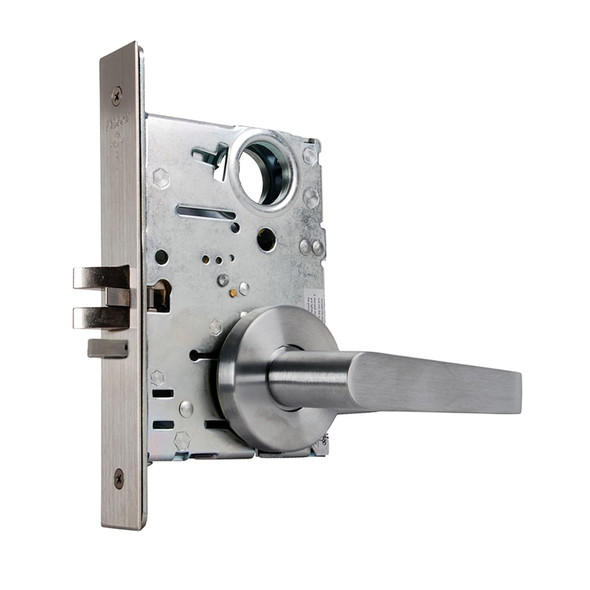

The Falcon MA411L DG 613 is a heavy-duty mortise lock built for commercial environments including offices, hospitals, and educational facilities. This ANSI/BHMA Series 1000 lock combines security with reliability, featuring a stainless steel latch and deadbolt with saw-resistant rollers, plus an interchangeable core for quick re-keying without removing the lock body.
Fits standard door thickness of 1-3/8" to 2-1/2" with 2-3/4" backset and accommodates both right and left hand doors. Compatible with SFIC products and available in electrified 12 or 24 VDC versions. As an authorized Falcon dealer, E.D. Locks offers expert installation guidance and keying support: contact sales@edlocks.com or call 1-877-207-6067.
Specifications
- Brand: Falcon
- Model: MA411L DG 613
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6 or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway standard cylinder; A keyway interchangeable core
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw stainless steel with hardened steel saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, ANSI A115.1 compliant
- Electrified: Available 12 or 24 VDC
- ANSI/BHMA: 156.13 Series 1000
- UL Rating: 3 hour A label
- Includes: Two nickel silver keys
