Description

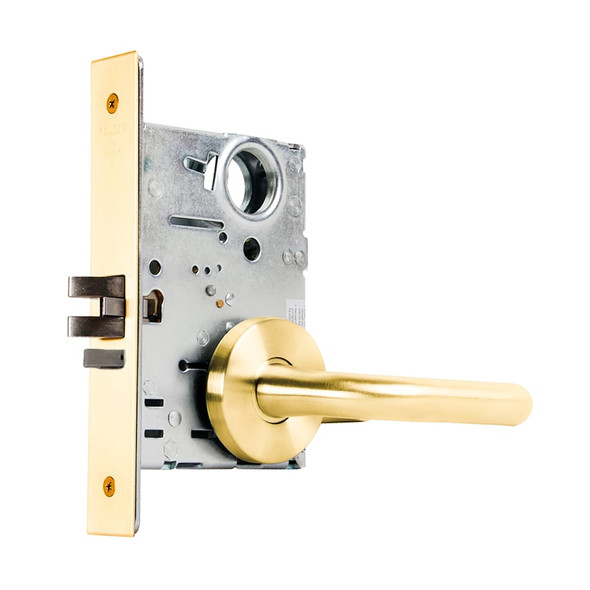

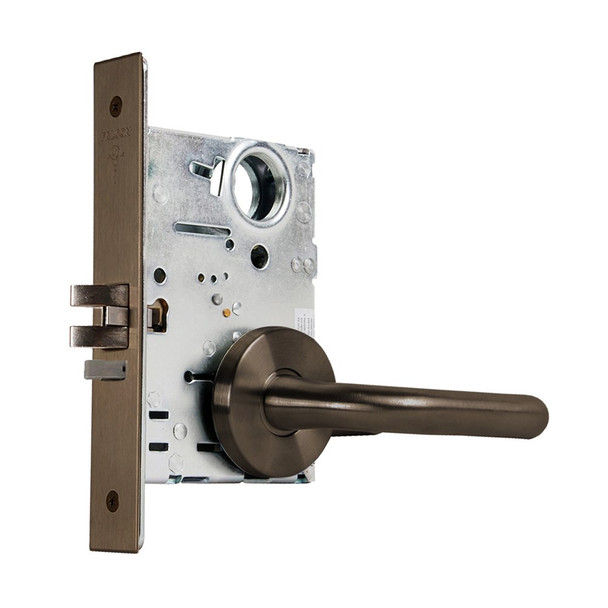

The Falcon MA411L SG mortise lock is a high-performance commercial lock engineered for offices, hospitals, schools, and other demanding environments. Built for constant use without fail, this Series 1000 lock combines security and durability with an affordable price point, making it ideal for retrofit projects requiring reliable access control.
This lock features an interchangeable core (SFIC compatible) that simplifies re-keying and works with standard or optional cylinders in 5, 6, or 7-pin configurations. Fits doors 1-3/8" to 2-1/2" thick with 2-3/4" backset. For specification details, compatibility confirmation, or keying assistance, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Falcon (Allegion)
- Model: MA411L SG 613
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard, left hand optional, reversible in field
- Cylinders: Solid brass, 5/6/7-pin standard; 6/7-pin I/C available
- Keyways: G standard (standard cylinder), A standard (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Dead Bolt: 1" throw stainless steel with two 13/16" hardened steel, saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Strike: Brass or stainless steel, non-handed, ANSI A115.1 compliant
- Electrified Functions: 12 or 24 VDC available
- ANSI/BHMA: Series 1000 (156.13)
- UL: 3 hour A label
