Description

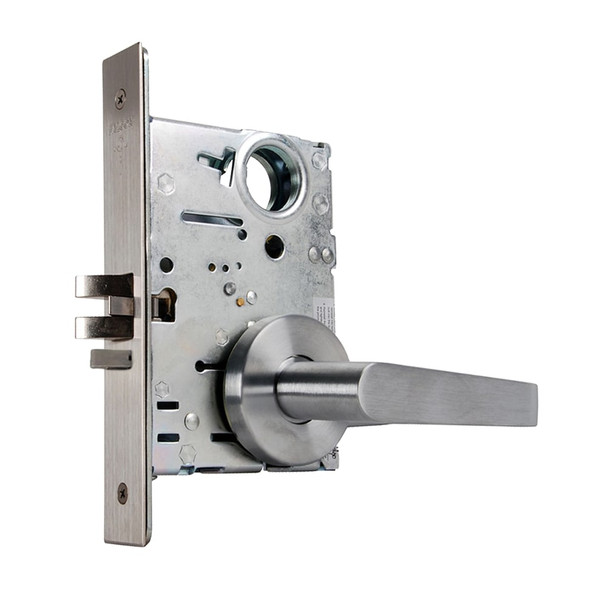

The Falcon MA411L is a heavy-duty mortise lock designed for commercial offices, hospitals, and educational facilities that demand reliable security and durability. This Series 1000 lock features an interchangeable core for quick re-keying, a mechanical anti-friction latch, and a 1-inch throw deadbolt with saw-resistant rollers, making it ideal for high-traffic environments.
Compatible with standard door frames and SFIC cylinders from other manufacturers, the MA411L fits doors 1-3/8 inch to 2-1/2 inch thick at 2-3/4 inch backset. As an authorized Falcon dealer, E.D. Locks offers expert guidance on keying options, handing, and installation. Contact our team at sales@edlocks.com or 1-877-207-6067 for technical support and to verify your exact specifications before ordering.
Specifications
- Brand: Falcon
- Model: MA411L DG 626
- Door Thickness: 1-3/8 inch to 2-1/2 inch
- Backset: 2-3/4 inch
- Case: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Latch Bolt: Two-piece stainless steel, 3/4 inch projection
- Deadbolt: 1 inch throw, stainless steel with hardened steel rollers
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Faceplate: 1-1/4 inch x 8 inch brass or stainless steel
- ANSI/BHMA: Series 1000 (156.13)
- UL Rating: 3 hour A label
- Electrified: Available 12 or 24 VDC
- Supplied With: Two nickel silver keys
