Description

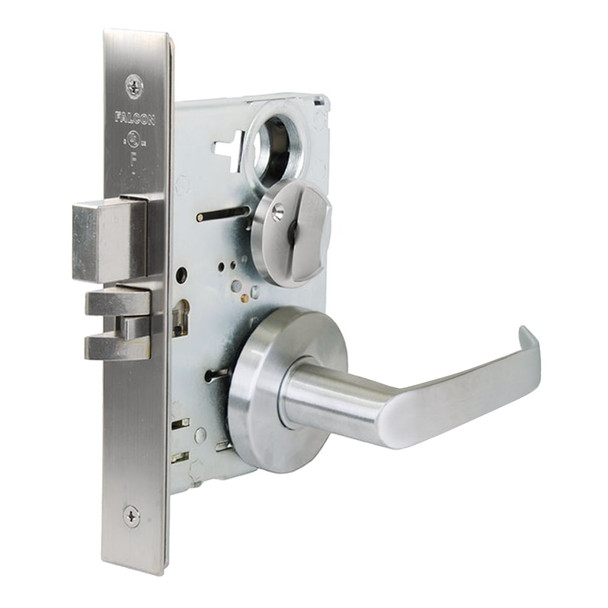

The Falcon MA Series mortise lock is a high-performance, affordable solution for commercial doors in offices, hospitals, schools, and other institutional settings. Built tough for constant use, it features a mechanical anti-friction latch, a 1" throw deadbolt with saw-resistant rollers, and an interchangeable core for fast re-keying without removing the lock body.
Fits standard door thicknesses of 1-3/8" to 2-1/2" with 2-3/4" backset. The SFIC interchangeable core is compatible with other manufacturers' products, and the lock meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour fire rating. As an authorized Falcon dealer, E.D. Locks provides expert guidance and support. Contact sales@edlocks.com or call 1-877-207-6067 for keying options and installation assistance.
Specifications
- Brand: Falcon
- Model: MA571CP6 DG 626
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Finish: 626 Satin Chrome
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Cylinder: Solid brass, 6-pin standard
- Keyway: G keyway (standard cylinder), A keyway (interchangeable core)
- Handing: Right hand standard, left hand optional, reversible
- Strike: Brass or stainless steel, non-handed
- ANSI/BHMA: Meets 156.13, Series 1000
- UL Rating: 3-hour A label
- Includes: Two nickel silver keys
